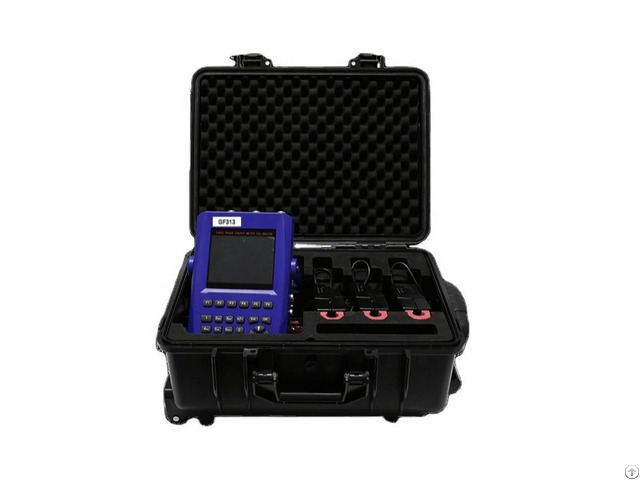

Three Phase Energy Meter Calibrator Gf313 Gfuve Handheld Ac Tester 0 2class - China
price: 12000.00 Dollar US$
The model GF313 handheld three phase electricity meter field tester is a economical 0.2% AC energy meter accuracy testing device, mainly used to test three phase and single phase electricity energy meter error on site, measure all various of AC electrical parameters - U, I, P, Q, S, PF, F and CT ratio & phase error etc.
And then it can check whether the wiring of the electricity meter is correct.
GF313 electronic meter tester is an ideal electrical test tool for the metrological service of electricity power utilities.
It has been widely used in more than 80 countries around the world.
Specification
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF313
Accuracy: 0.2%, 0.5%
Power supply: 220V; Li-polymer battery; Power line supply
Voltage range: 0-600V(0-830V)
Voltage error: ±0.05% (30V-600V) ±0.1% (0.01V-30V)
Current Test range: 1mA-120A; 0-200A; 0-500A; 0-1000A; 0-2000A; 0-3000A
Energy constant: 180000imp/kWh, 1800imp/kWh, 180imp/kWh
Pulse ratio: 1: 1
Pulse Output level: 5V
Pulse frequency: Standard 400Hz-2.5KHz, customized max 10KHz
Weight: 1.6 kg
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
Published date: February 1, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
