Thruhole Hi Sens Signal Relay G5v 2 H1 Dc12 - India

price: check with company for price

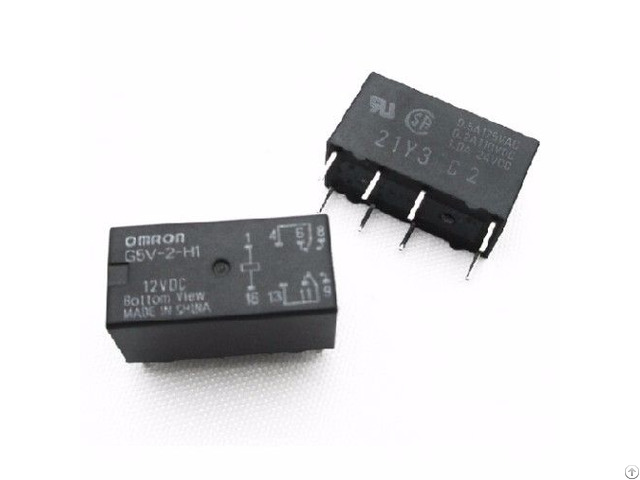

1A DPDT 12DC PCB ThruHole Hi-Sens signal Relay - G5V-2-H1 DC12

FEATURES:

• General-purpose DIL terminal layout.

• Wide switching power of 10 μA to 2 A.

• Fully-sealed type Relays standardized with bifurcated crossbar contacts.

Highly

reliable in addition to its high environment resistance.

• Conforms to FCC Part 68 (impulse withstand voltage of 1, 500 V for 10 x 160 µs

between coil and contacts and between contacts of the same polarity).

• High dielectric strength at 1, 000 VAC between coil and contacts, and 750 VAC

between contacts of the same polarity.

• UL and CSA standard approved.

APPLICATION:

• Telecommunication equipment

• Security equipment

DESCRIPTION:

Manufacturer: Omron

Product Category: Low Signal Relays - PCB

RoHS: RoHS Compliant Compliant

Brand: Omron Electronics

Product: Low Profile Relays

Type: Miniature

Contact Form: DPDT (2 Form C)

Contact Current Rating: 2 A

Coil Voltage: 12 V

Maximum Switching Current: 2 A

Coil Current: 12.5 mA

Coil Type: Non-Latching

Power Consumption: 150 mW

Contact Rating: 0.5 A at 125 VAC, 2 A at 30 VDC

Contact Termination: Solder Pin

Mounting Style: Through Hole

Series: G5V-2

Factory Pack Quantity: 25


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email

Published date: November 9, 2016
