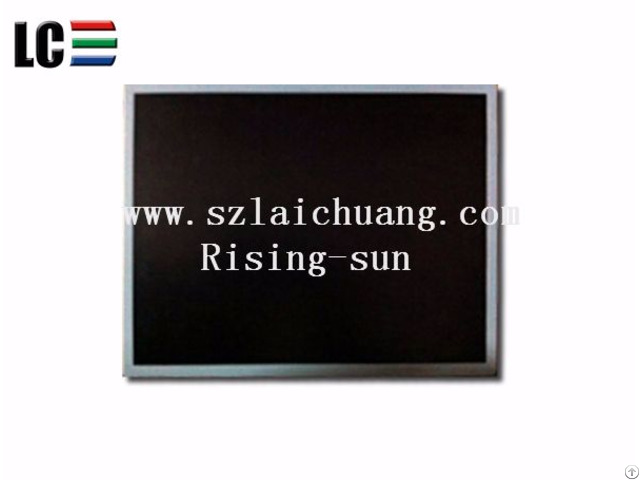

Tms150xg1 10tb 15 Inch1366 Rgb 768 Tft Lcd Display Panel - China

Productor TIANMA

MODEL TMS150XG1-10TB

Size 15.0"

Resolution 1024*768

Resolution Name XGA

Display scale 4: 3

Pixel Arrangement RGB

Pixel Pitch 0.099*0.297 mm

Panel Composition LCD

Technology a-Si TFT-LCD

Display mode TN, nw, Transmissive

Luminance 250 nits

Contrast Ratio 600: 1

Color 16.7M

Color Saturation 60%NTSC(CIE1931)

Response 2/6 (Tr/Td) ms

Viewing Angle 80/80/80/80

The Best View 6 o'clock

White Field Chroma X: 0.313; Y: 0.329

(White Field Dynamic 1.20 (9 points)

Scanning Frequency 60Hz

Reverse Scan No

The kind of Singnal LVDS

Interface LVDS

Singnal Interface Definition BLL-3PINS-HNL

Drive-screen voltage 3.3V

Input Current 500Ma

Brand of Singnal Interface JST

Model of Singnal Interface DF14H-20P-1.25H

Pitch of Singnal Interface 4 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 3 pins

Operation Temperature 0 °C ~ 55 °C

Storage Temperature -20°C ~ 60°C
