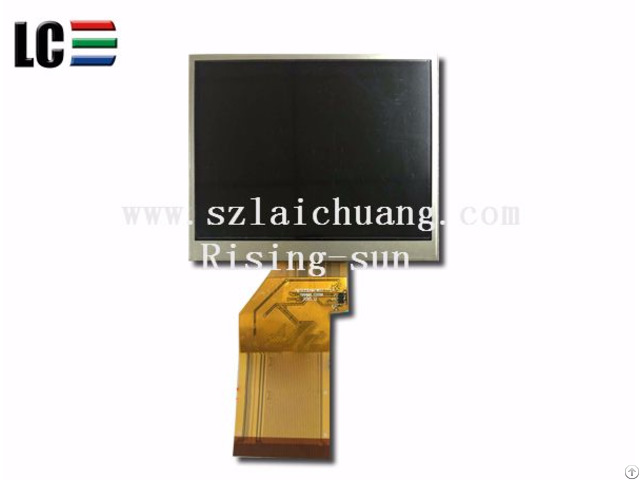

Tmt035dnafwu33 3 5 Inch A Si Tft Lcd Panel - China

Productor TIANMA

MODEL TMT035DNAFWU33

Size 3.5"

Resolution 320*240

Resolution Name QVGA

Display scale 4: 3

Pixel Arrangemen RGB

Pixel Pitch 0.073*0.219 mm

Panel Composition LCD, Technology a-Si TFT-LCD

Display mode TN, nw, Transmissive

Luminance 400 nits

Contrast Ratio 300: 1

Color 16.7M

Color Saturation -1%

Response 10/15 (Tr/Td) ms

Viewing Angle 50/60/60/60

The Best View 12 o'clock

White Field Chroma X: 0.320; Y: 0.330

White Field Dynamic 1.33 (9 points)

Scanning Frequency 60Hz

Reverse Scan No

The kind of Singnal Parallel

Interface Digital

Singnal Interface Definition Parallel/SerialRGB

Drive-screen voltage 3.3V

Brand of Singnal Interface FPC

Pitch of Singnal Interface 0.5 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 54 pins

Operation Temperature -20 °C ~ 70 °C

Storage Temperature -30°C ~ 80°C

Active Area 70.08*52.56 mm

Display Area 72.88*55.36

Outline 76.90* 63.90*3.30 mm
