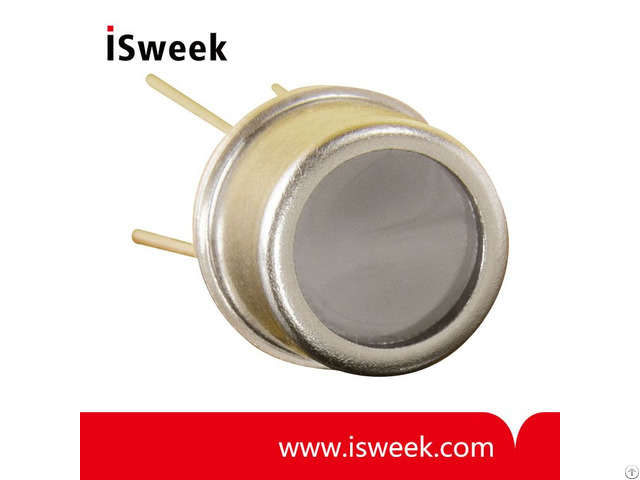

Tocon Blue4 Gap Blue Light Detector With Integrated Amplifier - China

price: check with company for price

TOCON_BLUE4

GaP blue light detector with integrated amplifier

/

Properties of the TOCON_BLUE4 GaP Blue Light Detector • GaP detector for blue light radiation in TO5 housing

• detection of incoherent blue light according to guideline 2006/25/EG

• 0 … 5 V voltage output, peak wavelength at 445 nm

• max.

radiation (saturation limit) at peak is 43 μW/cm2, minimum radiation (resolution limit) is 4.2 nW/cm2

• Applications: measurement of very low blue light irradiation, occupational safety

/

TOCON_BLUE4 GaP Blue Light Detector Specifications

Typical Responsivity at Peak Wavelength: 120 mV/µW/cm2

Wavelength of max.

Spectral Responsivity: 445nm

Responsivity Range: 390 to 515nm Supply Voltage: 2.5 - 5V

Dark Offset Voltage: 50µV

Temperature Coefficient at Peak: < -0.5%/K

Current Consumption: 150µA

Bandwidth (-3 dB): 15Hz

Risetime (10-90%): 0.066s Operating Temperature: -25 ~ +85°C

Storage Temperature: -40 ~ +100°C

Soldering Temperature (3s): 300°C


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: September 5, 2018
