Triaxial Mems North Seeker - China

ER-MNS-05 (0.25°-1°):

1 - Triaxial MEMS North Seeker;

2 - Mini size and high performance;

3 - Full temperature compensation.

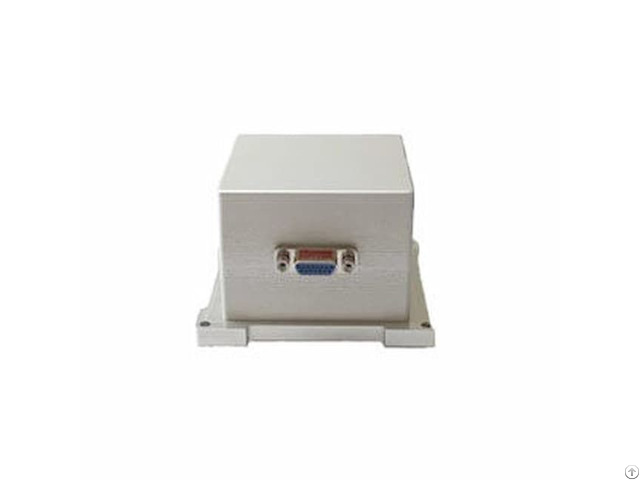

ER-MNS-05 Cost-Efficient Triaxial MEMS North Seeker

Technical Features Triaxial MEMS gyro and accelerometer

Full temperature compensation

High performance and mini size

Light weight, low power consumption

Resistant to harsh mechanical environment

Have software online upgrade function Applications

North seeking in logging tools/gyro tools

Pointing, steering and guiding in advanced mining/drilling equipment

Initial alignment in weapon/UAV launch systems

Direction pointing and tracking in satellite antenna, target tracking system

Guidance and navigation in navigation grade MEMS weapon system

Orientating and positioning in railway train system

Precision platform attitude measuring and controls

Precision attitude, position measuring in navigation grade MEMS IMU/INS

North finding and positioning in land surveying/land mobile mapping system

Petroleum exploration

Bridge, tall building, tower, dam monitoring

Rock and soil monitoring

Mining Specifications Model No.

ER-MNS-05A ER-MNS-05B ER-MNS-05C

Power supply (V) 5±0.25V

Power (W) 2

Run-up time (s) 2

Communication interface RS-422

Update Rate (Hz) 200

North seeking accuracy (°, 5min) 1°secψ 0.5°secψ 0.25°secψ

Size (mm×mm×mm) 70×65×45

Weight (g) 200

Environmental conditions Operating temperature (℃) 5~55

Storage temperature (℃) 0~65

Reliability

Mean Time Between Failures (h) 200000
