Tsev01cl55 Infrared Thermopile Temperature Sensor Module - China
price: check with company for price

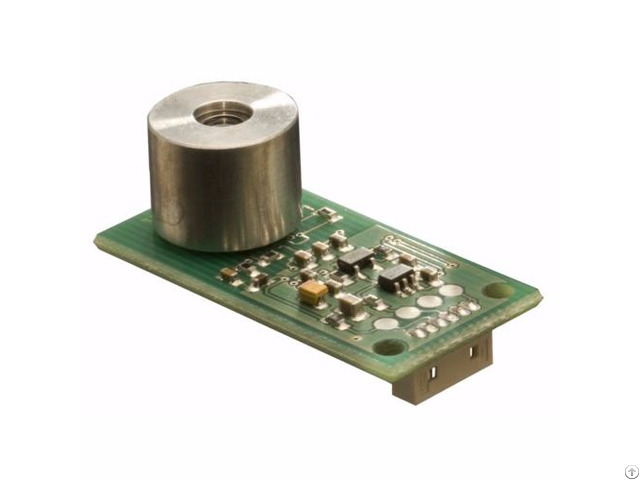

TSEV01CL55 Thermopile Sensor Module /
Description
TSEV01CL55 is a contact-less temperature measuring system for OEM use based on the detection of infrared radiation.
TSEV01CL55 is equipped with an infrared sensor (Thermopile) in front.
The Thermopile Sensor has to be pointed at the target object of interest.
The basic working principle is: • Detection of infrared radiation with a Thermopile sensor, which turns incoming radiation to an analogue voltage • Determination of sensor temperature using a thermistor • Further analogue signal processing and conditioning • Calculation of ambient and object temperature using a processing unit • Providing the ambient and objects temperature at digital output bus (I2C)
The TSEV01CL55 is suitable for a wide range of application where non-contact The TSEV01CL55 is equipped with a silicon lens (back focal length = 5.5mm) to narrow the field of view.
I2C pull-up resistors are provided on the sensor.
The I2C interface does not block the clock for clock-stretching.
/
FEATURES
• 0°C - 300°C Measurement Range
• 4V - 16V Supply Voltage Range
• Up to 1.5% Accuracy
• 2mA Current Consumption
/
APPLICATIONS
• Contact less Temperature Measurement
• Climate Control
• Industrial Process Control
• Household Applications
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: May 23, 2017 - Modified date: May 23, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
