Tspc 15s Series Toughsonic 30 Ultrasonic Level And Distance Sensor - China

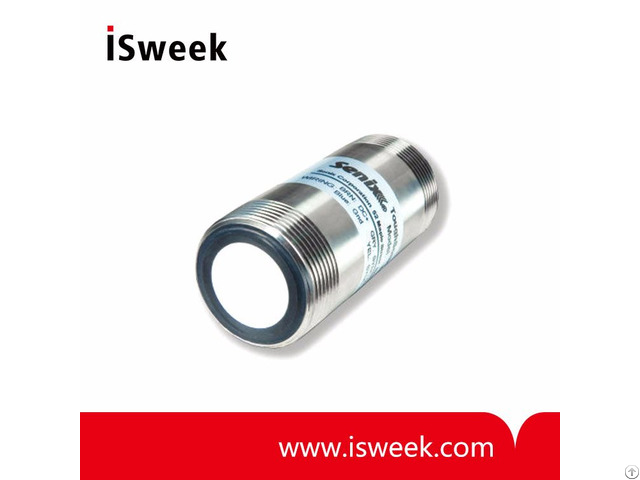

ToughSonic 30 Level & Distance Sensor

Windows PC or Button Setup, Waterproof, Multiple Outputs

/

TSPC sensors and SenixVIEW software put the power of ultrasonics in your hands yet retain the simplicity of push-button TEACH setup.

You can quickly adjust, optimize, save and clone your applications without calibration!

/

ToughSonic sensors contain a rugged transducer potted in a stainless steel housing for long life.

/

Outputs respond to measured distance and non-contact technology means nothing touches your materials.

/

Many applications exist in all industries.

/

Non-Contact Ultrasonic Distance & Level Measurement

/

TSPC-15S Series Ultrasonic Level & Distance Sensor Features

Distance Measurements

• Long range, short dead band

• Unaffected by optical factors like color and transparency

• PC or button “teachable” setup

• Narrow beam with adjustments to optimize performance

• Temperature compensated

Packaging & Performance

• Quick mounting

• Durable sealed housing for wet or dirty applications

• Short & overload protected I/O

• Multi-sensor synchronization

• Adjustable sensitivity

• Rear status indicators (3)

Free Functionality using adjustable interface features like switch hysteresis and time delays to build complete solutions such as pump or material flow controllers.

Save cost by eliminating PLCs, delay circuits and time delay relays!

/

TSPC-15S Series Ultrasonic Level & Distance Sensor Specifications

• Optimum Range: 20 ft.

(6.1 m) • Max Range: 30 ft.

(9.1 m) • Deadband: Typ.

< 10 in.

(25.4 cm) • Temperature: -40 to 158 ℉ (-40 to 70℃) • Outputs: Five selectable, plus serial data • Humidity: 0 to 100% operating /

TSPC-15S Series Ultrasonic Level & Distance Sensor Part Numbers

TSPC-15S-232: Serial RS-232 interface (PC COM port compatible)

TSPC-15S-485: Serial RS-485 interface (allows addressable multi-sensor networks)
