U14 Remote Series Water Level Sensor - China

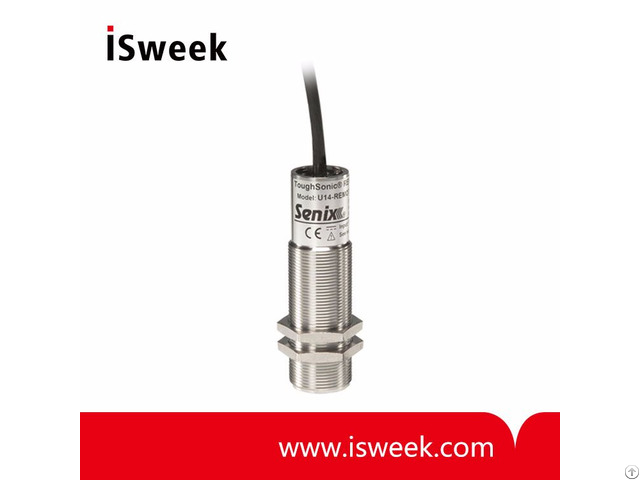

ToughSonic REMOTE 14 Level Sensor

Level & Distance Data Collection for Remote Monitoring

/

The ToughSonic REMOTE 14 is a remote water level sensor with a maximum range of 14 feet (4.3 meters).

This digital sensor is designed for accuracy and long-termultrasonic liquid level sensors in stainless steel durability in remote monitoring applications.

With a stainless steel housing, full epoxy potting and IP68 rating, it withstands the most demanding environmental conditions.

It uses up to 21 percent less energy in solar and battery-powered applications.

It also includes Senix Lightening Guard, with protection for electrical transients up to 7Kv on both power and communication circuits.

The ToughSonic REMOTE 14 is fully configurable using SenixVIEW software.

The ToughSonic REMOTE family of sensors are specified by some of the largest and most sophisticated irrigation, flood management and remote monitoring organizations in the world.

ToughSonic ultrasonic sensors are built Tough with:

• Type 316 stainless steel housing.

• Sealed epoxy potting for immersion protection.

• Rugged piezoelectric ultrasonic transducer.

• 75% better surge protection than IEC 61000-4-5

• Hardened internal electronics.

• UV resistant, potted-in cable.

/

ToughSonic ultrasonic sensors are built Smart with:

• SenixVIEW configuration and analysis software controlling more than 60 performance parameters, and dozens of viewing, analysis and maintenance options.

• Addressable Modbus RTU

• ASCII or phased high-speed, multi-sensor data collection for special applications.

/

U14-REMOTE Series Ultrasonic Water Level Sensor Some Example Applications:

• Irrigation control

• Open channel flow

• Conveyor contents profiling

• Agricultural machine control

• Liquid tank networks

• SCADA* level sensing (*Supervisory Control and Data Acquisition)

/

U14-REMOTE Series Ultrasonic Water Level Sensor Specifications

• Optimum Range: 10 ft.

(3 m) • Max Range: 14 feet (4.3 m) • Deadband: Typ.

< 4 in.

(100 mm) • Temperature: -40 to 158 ℉ (-40 to 70℃) • Data Output: Modbus, ASCII streaming, specials • Humidity: 0 to 100% operating • Type 316 stainless steel housing.

• Sealed epoxy potting for immersion protection.

• Rugged piezoelectric ultrasonic transducer.

• UV resistant, potted-in cable.

/

U14-REMOTE Series Ultrasonic Water Level Sensor Part Numbers

U14-REMOTE-232: Sensor with serial RS-232 interface (limited to single sensor connections)

U14-REMOTE-485: Sensor with serial RS-485 interface (allows addressable multi-sensor networks)
