U30 Remote Series Ultrasonic Water Level Sensor - China

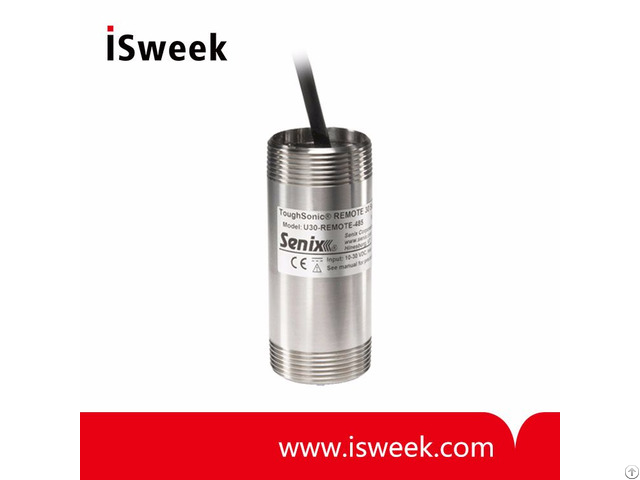

ToughSonic REMOTE 30 Level Sensor

Level & Distance Data Collection for Remote Monitoring The ToughSonic REMOTE 30 is a remote liquid level sensor with a maximum measurement range of 30 feet (9.1 meters).

This digital sensor is designed for accuracy and long-termultrasonic sensor stainless steel housing durability in remote monitoring applications.

With a stainless steel housing, full epoxy potting and NEMA-6P and IP68 ratings, it operates in the harshest climates.

It comes equipped with Senix Lightening Guard, a system that protects both power and communications circuits from repeated electrical transients of up to 7 kilovolts.

The ToughSonic REMOTE 30 uses up to 20% less energy than the ToughSonic 30 - It is fully configurable using SenixVIEW software.

This sensor is mounted on bridges, piers and tanks all over the world in critical remote level monitoring applications.

ToughSonic ultrasonic sensors are built Tough with:

• Type 316 stainless steel housing.

• Sealed epoxy potting for immersion protection.

• Ruggedized piezoelectric ultrasonic transducer.

• 75% better surge protection than IEC 61000-4-5.

• UV resistant, potted-in, 4-wire cable.

ToughSonic ultrasonic sensors are built Smart with:

• SenixVIEW configuration and analysis software controls more than 60 performance parameters and dozens of viewing, analysis and maintenance options.

• Addressable Modbus RTU.

• ASCII or phased high-speed, multi-sensor data collection for special applications.

U30-REMOTE Series Ultrasonic Water Level Sensor Some Example Applications:

• Irrigation control

• Open channel flow

• Flood monitoring

• Agricultural machine control

• Liquid tank networks

• SCADA* level sensing (*Supervisory Control and Data Acquisition) U30-REMOTE Series Ultrasonic Water Level Sensor Specifications

• Optimum Range: 20 ft.

(6.1 m)

• Max Range: 30 feet (9.1 m)

• Deadband: Typ.

< 10 in.

(254 mm)

• Beam Width: 7.5° ±1°off axis @ -3db

• Case Material: 316 stainless steel

• Configuration: Stored in sensor's non-volatile memory

• Temperature: -40 to 158 ℉ (-40 to 70 ℃)

• Data Output: Modbus, ASCII streaming, specials

• Humidity: 0 to 100% operating

• Transducer: 75 kHz, Ruggedized Piezoelectric

• Compensation: Selectable temperature compensation

• Protection: NEMA-4X, NEMA-6P, IP68

• Data Resolution: 0.0068 in.

(0.172 mm) per count

• Adjustment: SenixVIEW PC Software U30-REMOTE Series Ultrasonic Water Level Sensor Part Numbers

U30-REMOTE-232: Sensor with serial RS-232 interface (limited to single sensor connections)

U30-REMOTE-485: Sensor with serial RS-485 interface (allows addressable multi-sensor networks)
