U50 Remote Series Ultrasonic Water Level Sensor - China

ToughSonic REMOTE 50 Level Sensor

Level & Distance Data Collection for Remote Monitoring

/

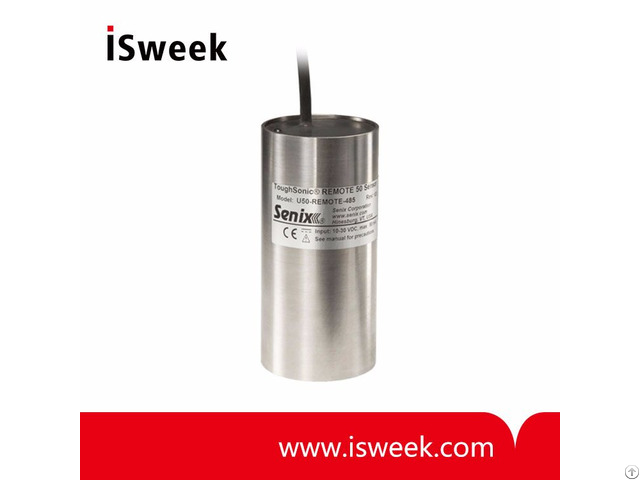

The ToughSonic REMOTE 50 is a remote liquid level sensor with a maximum range of 50 feet (15.2 meters).

This digital sensor is designed for accuracyUltrasonic sensor stainless steel housing and long-term durability in remote monitoring applications.

With a stainless steel housing, full epoxy potting and IP68 rating, it operates in the harshest climates.

It comes equipped with Senix Lightning Guard, a system that protects both power and communications circuits from repeated electrical transients of up to 7 kilovolts.

The ToughSonic REMOTE 50 uses up to 20% less energy than the ToughSonic 50 - It is fully configurable with SenixVIEW software.

This sensor is mounted on bridges, piers and tanks all over the world in mission-critical remote level monitoring applications.

/

ToughSonic ultrasonic sensors are built Tough with:

• Type 316 stainless steel housing.

• Sealed epoxy potting for wet and dirty applications.

• Ruggedized piezoelectric ultrasonic transducer, potted in place.

• Surge protection 75% stronger than IEC-61000-4-5.

• UV resistant, potted-in, 4-wire cable.

/

ToughSonic ultrasonic sensors are built Smart with:

• SenixVIEW configuration and analysis software controls more than 60 performance parameters and dozens of viewing, analysis and maintenance options.

• Addressable Modbus RTU.

• ASCII or phased high-speed, multi-sensor data collection for special applications.

/

U50-REMOTE Series Ultrasonic Water Level Sensor Some Example Applications:

• Irrigation control

• Open channel flow

• Flood monitoring

• Agricultural machine control

• Liquid tank networks

• SCADA* level sensing (*Supervisory Control and Data Acquisition)

/

U50-REMOTE Series Ultrasonic Water Level Sensor Specifications

• Optimum Range: 33 ft.

(10 m)

• Max Range: 50 feet (15.2 m)

• Deadband: Typ.

< 11 in.

(303 mm)

• Beam Width: 6° ±1°off axis @ -3db

• Case Material: 316 stainless steel

• Configuration: Stored in sensor's non-volatile memory

• Temperature: -40 to 158 ℉ (-40 to 70 ℃)

• Data Output: Modbus, ASCII streaming, specials

• Humidity: 0 to 100% operating

• Transducer: 50 kHz, Ruggedized Piezoelectric

• Compensation: Selectable temperature compensation

• Protection: NEMA-4X, NEMA-6P, IP68

• Data Resolution: 0.0135 in.

(0.344 mm) per count

• Adjustment: SenixVIEW PC Software

/

U50-REMOTE Series Ultrasonic Water Level Sensor Part Numbers

• U50-REMOTE-232: Sensor with serial RS-232 interface (limited to single sensor connections)

• U50-REMOTE-485: Sensor with serial RS-485 interface (allows addressable multi-sensor networks)
