Ulm 53 Ultrasonic Level Meters - China

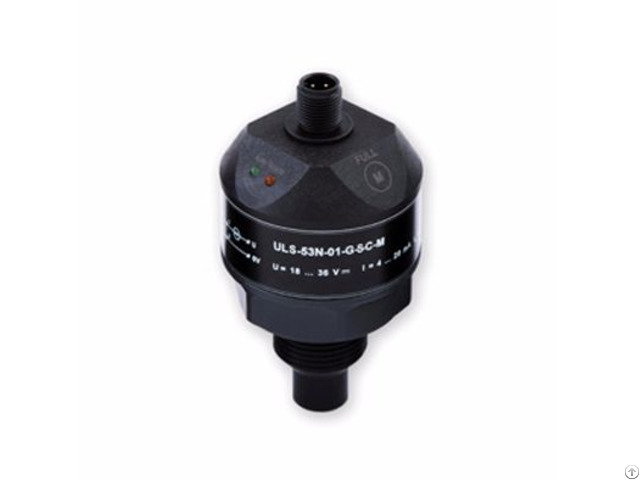

The ULM ® ultrasonic level meters are compact measurement devices containing an ultrasonic transmitter and an electronic module.

Using an transmitter, level meters transmit the series of ultrasonic pulses that spread towards the level surface.

The transmitter recuperates reflected acoustic waves that are subsequently processed in the electronic module.

Based on the period during which the individual pulses spread towards the level and back, this period is averaged by the electronics that performs temperature compensation and subsequently a conversion to an output current 4 -20 mA, voltage 0 - 10 V or output RS-485 Modbus.

/

The ULM ® ultrasonic level meters are suitable for continuous non-contact level measurement of liquids (water solutions, sewerage water, etc.

), mash and paste materials (sediments, sticks, resins etc.

) in closed or open vessels, sumps, reservoirs and open channels.

In case the level of bulk-solid materials is measured, the measurement range is reduced.

/

All setting-up is done using two buttons positioned in the upper part of the sensor.

The level meter is equipped with optical state indication (STATE) and with a setting-up process (MENU).

The level meter can output current or voltage signals.

They are manufactured in model versions for non-explosive areas (N) and explosive areas (Xi).

/

ULM- 53 Ultrasonic Level Meters FEATURES

• For continuous level measurement of liquids (even if polluted), mash and paste materials in open or closed vessels, sumps, open channels, etc.

• Variants of level meter with adjustment by two buttons, or by magnetic pen

• Xi version for usage in explosive areas

• State indication by two LEDs

• Current output (4 .

20 mA), voltage output (0 .

10 V) or RS-485 Modbus output

• Wide choice of electric connection via connectors, cable glands or protective conductor

• While used with horn adapter can be measured also some difficult media (foamy levels, loose materials, etc.

)
