Underfloor Heating Probe - Taiwan

The digital thermostat is not included.

Each digital thermostat usually equips with 1~ 3 sensor probes for more accurate sensing ability.

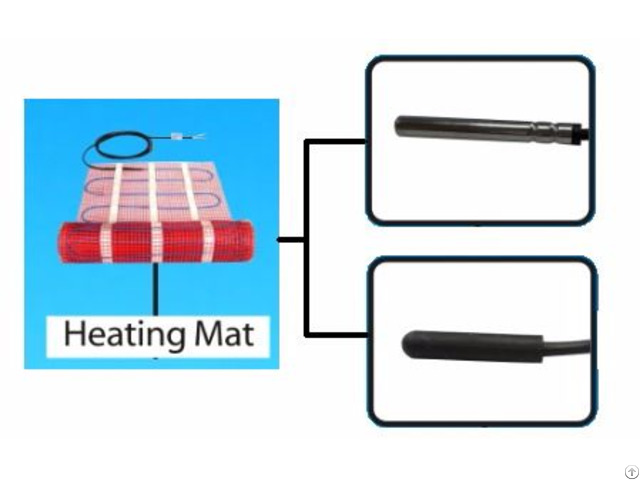

This underfloor heating sensor can be customized in different kind of shapes and length.

Degree of Protection: Waterproof to IP67

Temperature Range: -50°C to 105°C

Cable: 0.3 sq mm standard copper

First Insulation PP.

Secondary Insulation thermoplastic elastomer.

Color Black

Hardness 50 shore D

Halogen: Free cable

Strength of Cable: 200N

Tip: Thermoplastic Elastomer overmoulded on the cable.

Insulation Resistance: 100MΩ at 1000V DC

Dielectric Strength: 3000V AC

RT Table:

Temp (°C) R (Ω) A.

R.

(±%)

0 41093 6.1

5 33209 5.9

10 26988 5.7

15 22074 5.5

20 18148 5.2

25 15000 5.0

30 12462 5.2

35 10404 5.4

40 8728 5.6

45 7355 5.8

50 6226 5.9
