Uniaxial Tilt Sensor Canopen Output - China

Introduction

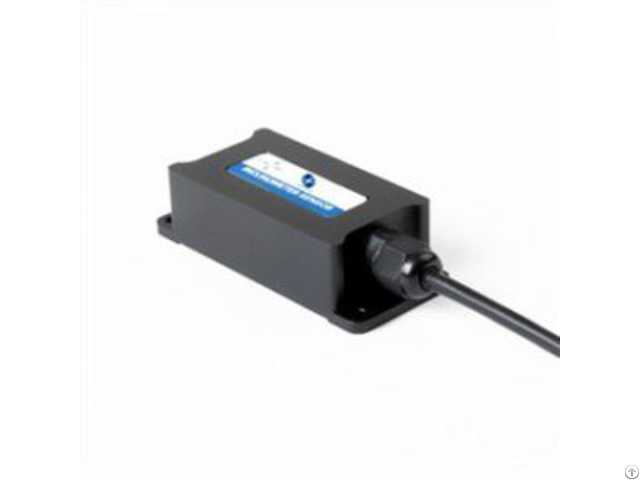

ER-TS-4155CA CAN Single Axis Tilt Meter is a CANopen output uniaxial tilt sensor which is specially developed for industrial field control.

The product has a built-in micro-electro-mechanical production process tilt unit, which has the characteristics of small size, low power consumption, and high consistency and stability of the micro-electro-mechanical process.

It is an industrial-grade tilt module with a working temperature of -40~+85°C.

The product uses non-contact measurement of the original quantity, and can output the current attitude and inclination in real time.

The operation is simple, and there is no need to retrieve the two faces of relative changes.

It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments, making it an ideal choice for industrial automation control and platform attitude measurement.

Featuers Single axis tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

Industrial design

Wide voltage input DC 9~36V (5V customizable)

Wide temperature working -40~+85℃

Measuring range: 0~±180°(optional)

High vibration resistance>3500 g

Baud rate 100K-500K bps

IP67 Protection

Output: CANopen

Small volume (90*40*27mm) (customizable) Applications

High voltage wire tower monitoring

Satellite solar antenna positioning

High tractor, deep farming machinery

Mining machinery, oil logging equipment

Medical equipment

Tripod head levelling

Hydraulic lifting platform

Inclination monitoring

Angle control of various construction machinery

Inspection of bridges and dams
