Vg 091a Fiber Optic Gyroscope System - China

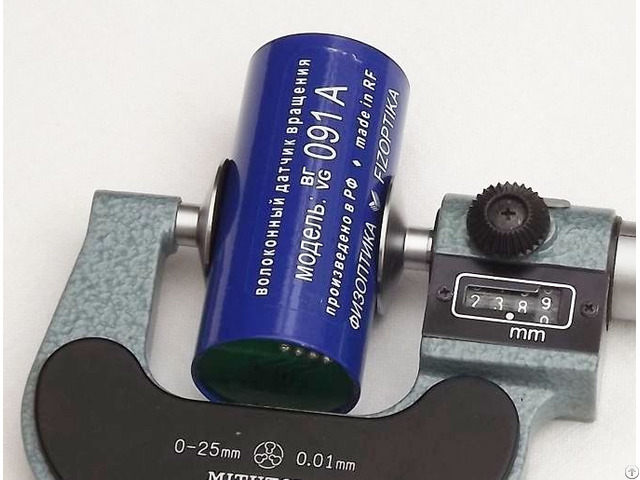

VG 091A is the smallest ever fiber optic gyroscope system (sensing optics and electronics in one housing)

Most sensitive and accurate in its size

Recently developed plastic frame is expected to bring to the VG 091A even lower 30g weight and better bias behavior



Just +5V for full system performance



Lowest 0.5 W power

Fastest 0.02 s start-up

Widest 1kHz bandwidth

Lowest 30 gram weight



PHYSICAL PARAMETERS

1 - Ω- sensing axis

2 - Dissipation - 1 W

3 - Weight - 30 gram ( 40 gram max )

4 - Volume - 0.025 litre

5, Housing material - aluminum alloy

6 - Housing protection - anodizing

7 - Tolerances per ISO 2768-m

8 - Ingress protection class - IP67



Specification

MAIN PARAMETERS ( typical values )

♦ Rate range 300 deg/s

Scale Factor (SF) 7 mV/deg/s

Frequency range 0 - 1 kHz

Angle random walk 0.04 deg /√h

Bias stability, RMS 4 deg/h

SF stability, RMS 0.1 %

Readiness time 0.02 s

ENVIRONMENT

Temperature operating -40°C .

+70°C

Temperature endurance, 2 hr -55°C.

+85°C

Vibration, RMS 12g, 20Hz.

2kHz

Shocks 150g, 1 ms

Acceleration 5g

♦♦ RELIABILITY

MTBF 60000 hours (20º С, predicted)

Lifetime (predicted) 15 years

♦ Precision class - 4

♦♦ Estimated for low humidity
