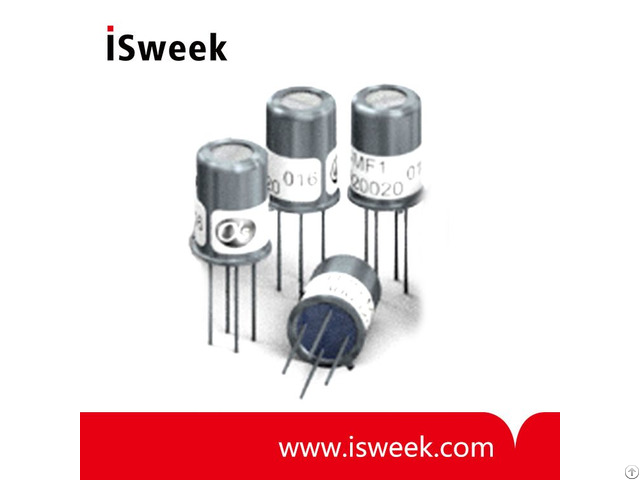

Voc Mf1 P Type Metal Oxide Volatile Organic Compounds Sensor - China
price: contact company for price
P-type Metal Oxide VOC Sensor Description
This sensor is a broadband total VOC detector.
When the cost of a PID is not justifiable, this sensor will detect VOCs with 10-50 ppb limit of detection, depending on the VOC.
/
Unlike common n-type sensors, this metal oxide sensor has a large dynamic range, repeatable response, low humidity response and resistance increases in the presence of most VOCs.
/
The change in resistance can be converted to an output voltage via a simple electrical circuit.
Although the sensor can be used in constant temperature/ voltage mode, best response is achieved when the sensor is cycled between 400°C (sensing temperature) and 525°C (reset temperature).
/
Developed over many years, our p-type metal oxide gas sensors offer the following benefits:
• stable baseline
• low humidity sensitivity
• positive response to gases (safer response)
/
Volatile Organic Compounds (VOCs) detection for low cost IAQ applications
/
VOC-MF1 P-type Metal Oxide VOC Sensor • housings: TO-5 metal can, the most common format
• no passive filter fitted
• Range: 1 to 100ppm
• Operating Temperature Range: -20 to 120°C
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: August 9, 2018
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
