Voltage Low Cost Single Axis Tilt Sensor - China

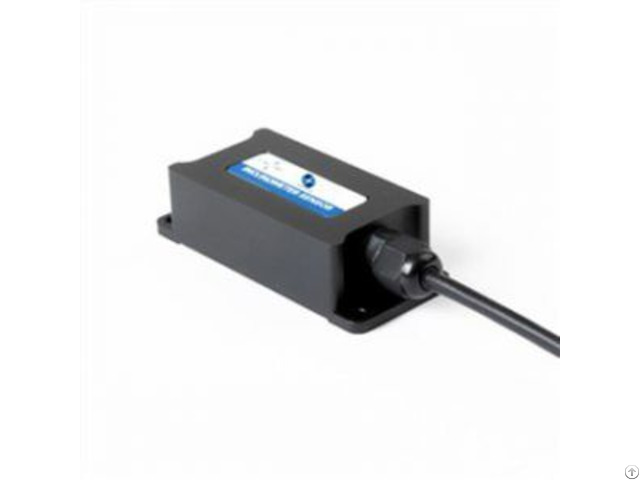

ER-TS-4150VO Series tilt sensor is a low-cost single-axis voltage output inclination sensor.

The output voltage is 0~5V, 0.5~4.5V, and 0~10V is optional.

It is mainly aimed at the application market where the volume and cost are highly limited.

Due to the built-in inclination unit of a new generation of MEMS production process, the finished product is small in size and low in power consumption.

The consistency and stability of the MEMS process is very high, and its working temperature reaches industrial grade -40~+85℃, which is a cost-effective tilt module.

The product adopts the principle of non-contact measurement, which can output the current attitude and inclination in real time.

It is simple to use, and there is no need to find the two surfaces that change relative to each other.

The advantages of small size, resistance to external electromagnetic interference and strong impact resistance make it an ideal choice for the attitude measurement of industrial equipment platforms.

Features

Single axis tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

Output: 0-5V, 0.5~4.5V, 0-10V (optional)

Wide voltage input DC 9~36V

Wide temperature working -40~+85℃

Measuring range: 0~±180° (optional)

High vibration resistance>3500g

IP67 Protection

Can output RS232 at the same time

Small volume (90*40*27mm) (customizable) Applications

Railway gauge

Satellite solar antenna positioning

Tractor, deep ploughing farm machine

Mining machinery, oil logging equipment

Medical equipment

Tripod head levelling

Hydraulic lifting platform

Tilt based monitoring

Various construction machinery angle control

Inspection of bridges and dams
