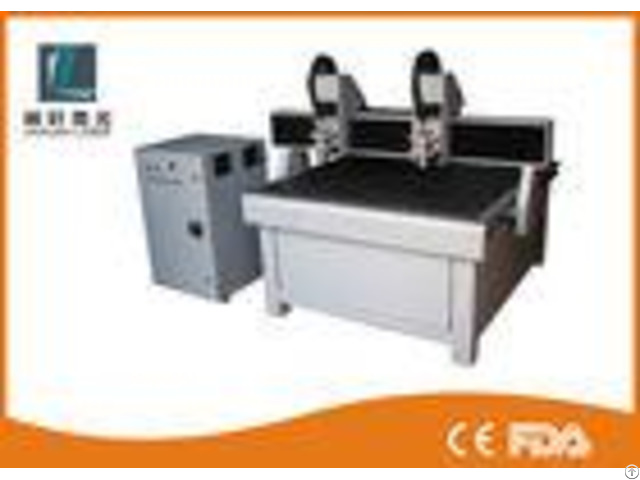

Water Cooling Cnc Router Machine For Ad Sign Making 600mm 900mm 1300 2500 Mm - China
price: check with company for price
Water Cooling CNC Router Machine for AD Sign Making 600mm*900mm, 1300*2500mm 1 - Unique auto tool changer system can change tools alternatively.
Tool sensor is used to compensate the tolerance of tool length, Tool magazine capacity of 8 tools, changing tools only takes 8 seconds 2 - This LINXUAN CNC machine uses 9KW High accuracy, long service time, steady movement, good starting performance, great torque, fast speed and high efficiency are some advantages of this machine.
3 - Servo motor and driver, servo motor is higher than the stepper motor.
Servo motor runs smoothly.
no vibration phenomenon even in the low speed.
The output torque of the servo will not decrease with the speed and at a higher speed will not drop sharply.
- - - -
items | Italy HSD Spindle CNC Router Machines | X, Y, Z Working Area | 1300X2500X350mm | Table Size | 1355X2540mm | X, Y, Z Traveling Positioning Accuracy | 0.03/300mm | X, Y, Z Repositioning Positioning Accuracy | 0.05mm | Lathe Structure | Welded Strucutre | X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings | Z Structure | Ball Screw, Shaft Linear Bearings | Max.
Consume power | 8.0Kw | Max.
Speed | 0-45000mm/min | Max.
Working Speed | 0-25000mm/min | Spindle Power Motor | 9.0Kw HSD Spindle ATC | Spindle Speed | 0-24000RPM | Working Mode | Servo system | Working Voltage | AC380V/50/60Hz, 3PH | Command | G Code, *uoo, *mmg, *plt | Operating System | SYNTEC System (Option DSP System) | Interface | Internet line | Flash Memory | 512M | Collect | ER32 | X, Y Working Delicacy | <0.01mm | Software | Type3 software, Wentai software, Artcam software | Running circumstance | Temperature: 0C~45C, | Relative humidity: 30%~75% | Packing Size | 4000x2150x2200 mm | - - - -
Company Contact:
- Posted By: Wuhan Linxuan Laser Co., Ltd
- Phone: 86-27-87436808
- Address: ROOM 601,NO. 20 BUILDI NG,GUANGGU NEW POWER I NDUSTRIAL PARK,GUANGGU SECOND ROAD NO.219,JIAN GXIA DISTR, WUHAN , hubei , China
- Email:
Published date: May 3, 2018
- Business Description: Wuhan Linxuan Laser Co., Ltd is a high-tech enterprise in Wuhan East Lake Development Zone , we are specializing in producing, developing and selling laser marking machine, laser welding machine, laser cutting machine, etc.
It is Chinese industrial laser processing equipment pioneer.
