Wave Type Oilfield Screens Api 120 For Linear Motion Shakers 1070 X 570 Mm - China

Wave screen 1070 x 570 mm Oilfield Screens API 120 for Linear Motion Shakers 1: Description Wave screen 1070 x 570 mm Oilfield Screens API 120 for Linear Motion Shakers.

Waved screen has typical mesh cloth that appears regular waves, and it can be mounted on suitable shaker by hookstripe, or wedge-shaped fastening device.

As compared to flat screens, Waved screen have higher handling capacity by reason of more useful area.

we can provide various sizes of Waved screens to serve the clients'demands.

2: Application Shale shaker screen widely used in petroleum drilling machine, solids control equipment, desander, desilter and so on.

Especially, it is the important fitting of drilling slurry purified equipment.

For acid, alkali conditions screening and filtering.

Used as Mud network for the oil industry, chemical fiber industry for filter screen, electroplate industry to make pickling network, etc.

3: Features: Different layers with different density.

To arrange these layers reasonably and exactly, the screening effect will become more better.

The waved cloth bonded to metal backing plate, has more surface.

The effective area of Waved screen obtain 125% to 150% of a flat screen, so that Waved screen can load more drilling fluid flow.

4: Specifications - - - - Product name | Wave screen 1070 x 570 mm Oilfield Screens API 120 for Linear Motion Shakers | Wire mesh material | SS304, SS316 or customized as customers demands | Size | 1070 x 570 mm | Weight | 7 kgs | Screen layers | 2 or 3 layers | Mesh count | 20-325mesh | Advantage | Uniform mesh Strong adhesive technology Mechanized control High opening rate Big supporting capacity Good surface tension | - - - - 5: Technical details We use excellent level wire cloth(304, 316), the material epoxy glue has environmental suitability.

The curing temperature is above 220 degrees.

The softening temperature is 140 degrees.

The sealing rubber strip is NBR, so our screens could meet the terrible acid-base environment.

About the types of wire cloth, we can provide DX, HP, DF, XR, XL, RHB and so on.

We can provide three-layer even four-layer all types of screen cloth.

About API standard, all our screens are been tested in the drilling sites and laboratory.

According to our clients feedbacks, our screens are completely conformed to API RP 13C.

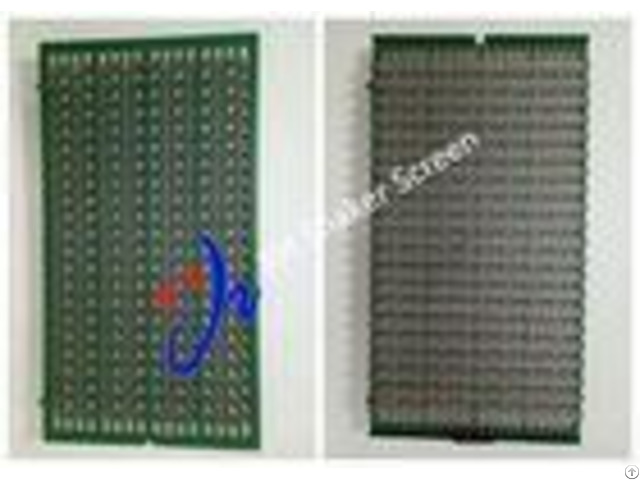

6: Pictures
