Wds 620 Rework Pc Station Low Cost Bga Chip Desoldering And Soldering Machine - China

WDS-620 rework pc station, low cost bga machine bga chip desoldering and soldering machine

Where WDS-620 can be used ?

1 - Smart phone /iPhone/iPad repair;

2 - Notebook/ Laptop /Computer/Macbook /PC repair;

3 - XBOX 360/PS2/ PS3/PS4 Wii and so on video game consoles repair;

4 - Othe LED/SMD/SMT/IC BGA rework;

5 - BGA VGA CPU GPU soldering desoldering;

6 - BGA chips, QFP QFN chip, PC, PLCC PSP PSY rework.

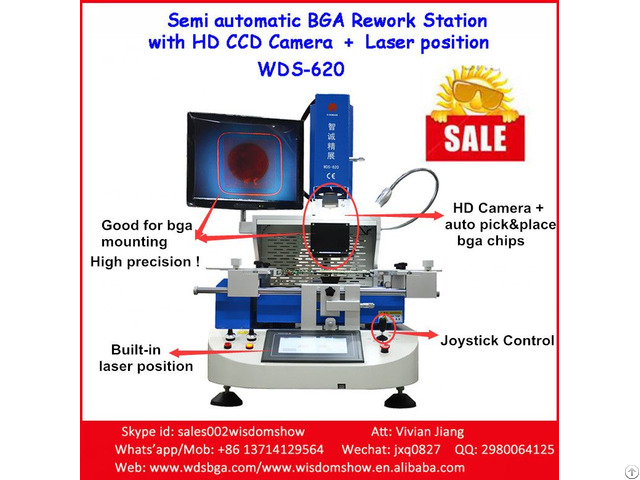

WDS-620 automatic BGA Rework Station Main features:

1 - Built-in infrared laser position, fast positioning for PCB.

2 - Nozzle, equiped with many size nozzles, which also can be customized.

3 - Three temperature zones independently,

4 - With a powerful cross-flow and one external temp sensor socket

5 - High sensitive touch screen, Panasonic PLC control.

6 - HD vision CCD camera, good for bga mounting.

WDS-620 BGA rework station Technology parameter

1 Power supply AC 110V/220V±10% 50/60Hz

2 Total power Max 5300W

3 Heater power Upper temp.

zone 1200W, second temp.

zone 1200W, IR temp.

zone 2700W

4 Electrical material Driving motor+ smart temp.

controller+color touch screen

5 Temperature controlling (high precision K-sensor)(Closed Loop), independent temp.

controller, the precision can reach ±1degree

6 Locating way V shape slot, PCB support jigs can adjust, laser light do fast centering and position

7 PCB size Max 400*390mm Min 10*10 mm

8 Applicable chips Max 80*80mm Min 1*1 mm

9 Overall dimension L650*W630*H850mm

10 Temperature Interface 1 pcs

11 Weight of machine 60KG

12 Color Blue

Want to know more details, pls feel free to contact us, or leave me inquiry, thanks friends！
