Weight 256g Gsm Rtu Controller Ip30 Housing Option Network Remote Setting - China

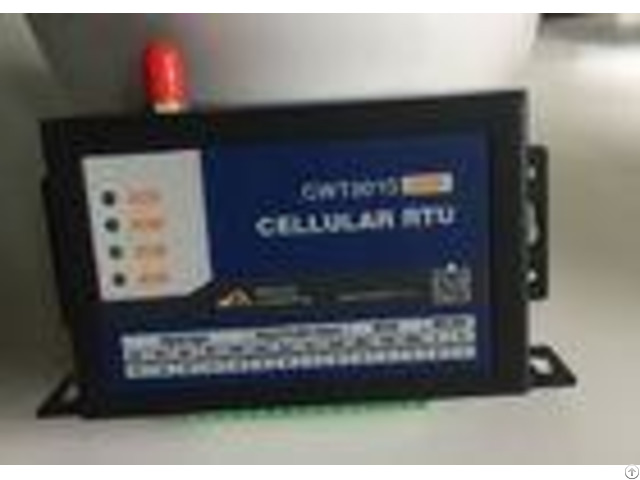

2018 Newly Arrived Industrial IOT Automation and Gateway Products CWT5010 RTU with 4 DI, 4 DO, RS232 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches.

System Feature # Industrial NXP 32-bit ARM MCU # Double watchdog to ensure stability # Support signal fileter # Network-reconnect and retransmission to ensure data accurately transmit # Automatically or manually update interior clock by sms or NTP or server # Automatically execute preset task by schedule(second, minute, day, week, month) # Can automatically execute tasks according to preset Events # Provide console utility for visual programming over 100 parameters # Optional exterior rechargable battery for 8-20 hours working when power lost DI feature # Accept NO or NC dry contact DO(T) feature # Transistor output(drive voltage=power supply voltage, Drive current500mA) # DO can be activated by remote or local schedule # Remain down status when power lost DO(K) feature # Relay NO output(load: 2A / 125VAC, 220VDC) # Remote or local event activate DO on/off/pulse # Status memory function for power lost AI feature # Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision) # Transduce 4-20mA(0-5V) to actual value # Configurable parameters for signal acquisition, alarm, data communication # Signal lost alarm SMS feature # Preset 10 phone numbers (support distribute authority to receive sms) # Send sms alarm when input is triggered or reach alarm level # Editable alarm and recover sms with time stamp # Query any IO channels status or value via sms command # Activate output by sending sms # Can set interval to report IO channel's status or value by sms # Remote setting via sms commands # Sms remind for sim card overdue # Support power lost sms alarm and recover sms(works with inside battery) Wireless network communication # Option network: cellular(2g/3g/4g) or Wi-Fi # Support TCP/IP two-way communication with Max.

4 servers(IP or domain) # Events(e.g. alarm, timer) trigger upload data # Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol # Can forward data between wireless network with RS485 or RS232
