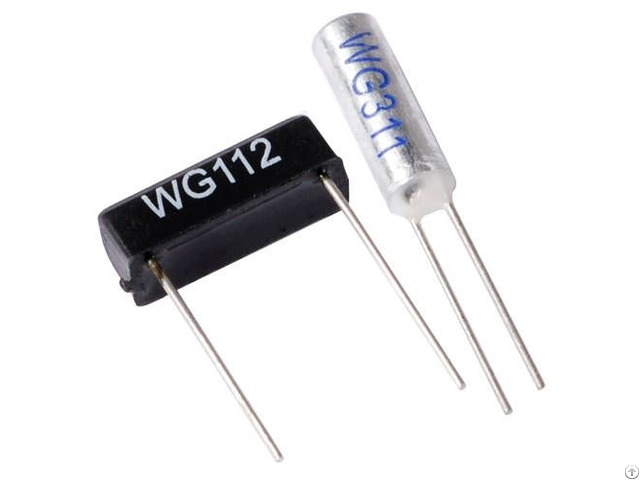

Wiegand Effect Sensor Zero Power Magnetic Sensors Wg112 - China
price: contact company for price
Product Description
Features No need the power supply when it works.
Bipolar excitation working mode, the sensor outputs a pair of positive and negative electrical pulse signal when the magnetic field polarity changes for a circle.
Only when the external magnetic field polarity changes, magnetic strength reaches the excitation threshold, the sensor will outputs a pulse signal, so the vibration won't happen.
The operation is stable and reliable.
The signal amplitude has nothing to do with the magnetic field changing speed, and it can work at the speed near to zero.
The signal processing is simple, and it can be directly connected with transistors, comparators, A/D converter, etc.
The output signal can be remote transmitted by the signal lines, it's suitable for LAN management.
No mechanic contact, no spark, is a kind of intrinsic safety devices.
Wide operating temperature range, strong environmental adaptability.
Application Rotation count: smart water meter, heat meter, gas meter, fuel gauge, flow meter, odometer etc.
Position detection: oil depot level detection, tipping bucket rain gauge, unattended hydrometeorology monitoring.
Electronic switch: explosion-proof switch, ignition switch etc.
Company Contact:
- Phone: +8615695216759
- Address: Building 3, Huaye Park, Qidi City, 8, Zhineng Road, Qilin Scienc, Nanjing , 江苏省 , China
- Email:
- Website: http://www.ahest.net
Published date: September 8, 2022
- Business Description: AH series linear Hall IC, WG series zero power consumption magnetic sensor.
We are committed to the development and production of China's own intellectual property rights of the magnetic sensor products.
We are also a professional hall effect sensor manufacturer, welcome to contact us!
