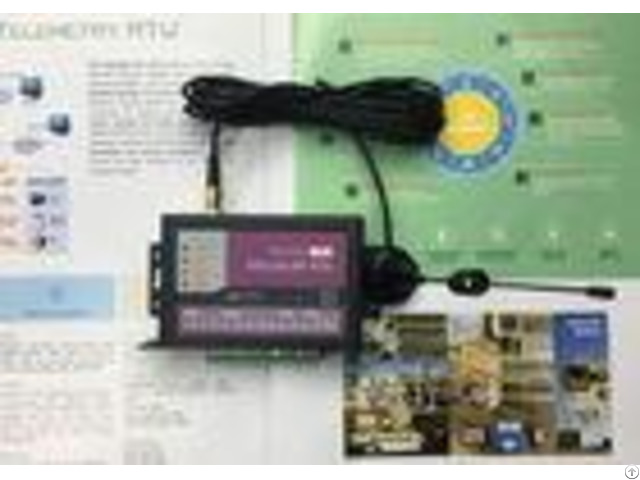

Wifi Monitoring Iot Gateway Device Automation With Rs232 Rs485 Series Port - China
price: check with company for price
WIFi IOT automation device, WiFi monitoring with IOT Gateway System Feature # Cortex M3 32-bit ARM # Double watchdog to ensure stability # Support signal fileter # Support automatic network reconnection and data re-send # Synchronize clock with multiple way, Sms, NTP, CwtIO Server # Automatically execute preset task by schedule(second, minute, day, week, month) # Can automatically execute tasks according to preset Events # Provide console utility for visual programming over 100 parameters # Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost DI feature # Accept NO or NC dry contact DO(T) feature # Open-collector output(drive voltage=power supply voltage, Drive current500mA) # DO can be activated by remote or local schedule # Remember status when power lost DO(K) feature # Relay NO contact output(load: 2A / 125VAC, 220VDC) # Remote or local event activate DO on/off/pulse # Remember status when power lost AI feature # 4-20mA (option: 0-5V) in, Sampling frequency: 33Hz, 10-bit precision) # Convert 4-20mA(0-5V) to physical value # Support offset and gain, alarm parameters, upload data setting # Signal lost alarm SMS feature # Support 10 cell phone numbers for alarm and control # Any device alarm status can be sent by sending sms # Customizable sms messages, like alarm, receove, report # Query any IO channels status or value via sms command # Control output via sms command # Configurable schedule for sms report IO channel's status or value # Remote setting via sms commands # Can query SIM card balance, sms forward # Support power lost sms alarm and recover sms(works with inside battery) # Wireless network communication # Option network: cellular(2g/3g/4g) or Wi-Fi # Support TCP/IP two-way communication with Max.
4 servers(IP or domain) # Events(e.g. alarm, timer) trigger upload data # Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi # Support two-way data transparent transmission with RS485 or RS232 Modbus feature # polling salve over RS485 with modbus rtu protocol # Can be a I O module to be read/write by modbus master # As modbus to gprs/3g gateway TI feature # Can set high or lower level to alarm, data log via wireless network # Can switch or F # Support probe disconnect alarm
Company Contact:
- Posted By: CWT(HK) Co., Limited
- Phone: 86-755-26719943
- Address: 7/F, Block A, Building F1, TCL International E City, No.1001 Zhongshanyuan Road, Nanshan District, S, Shenzhen , Guangdong , China
- Email:
- Website: https://www.iotgatewaydevice.com
Published date: May 22, 2018
- Business Description: Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well.
Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and in
