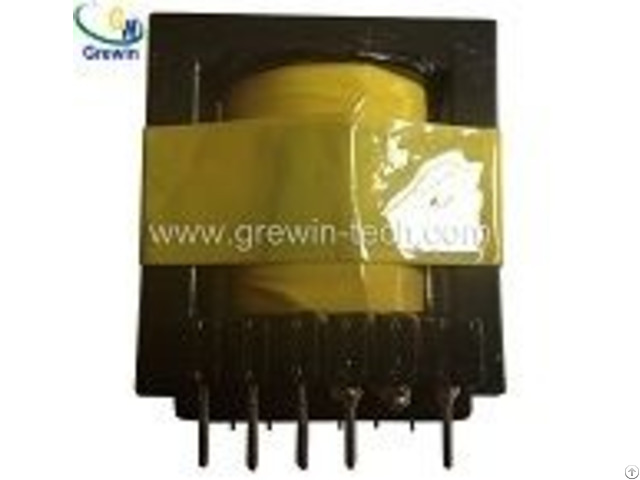

Name: Wound Core 24v Transformer Wound Core 24V Transformer PQ type Transformer Parameters Brand Name; GREWIN Transformer Core structure; Laminated Coil number; Autotransformer Place of Origin; China Coil Material; ferrite Coil structure; toroidal Usage; High Frequency Model : PQ Phase; single Application; High-frequency switching power supply and High-frequency inverter power transformer.

PBX Deliver time; Within 15 working days Package; Customized standard cartons or export standard carton with strong pallets ATTENTION; YOU CAN CUSTOMIZED ALL SERIERS ACCORDING TO YOUR REQUERMENT 1).

Features: Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm

structure, can fine-tune the inductance, etc., are widely used in fax

machines, PBX.

2).

Applicable frequency range: 20 to 100kHz :

Operating frequency: higher than 200kHz

High magnetic flux and low loss magnetic materials

With low leakage inductance and high efficiency .

3).

Applications: PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and

instruments.

UL insulation system for Class B (130), F (155), H (180)

4).

Can make other customized Ferrite transformers:

Power range: core type using N67 grade material

<5: RM4, P11/7, EF12.6 and U10

5 to 10: E (F) 16, RM5 and P14/8

10 to 20: RM6, E (F) 20, P18, U15 and EFD15

20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20

50 to 100: ETD29, ETD34, RM12, P30 and EFD25

100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30

200 to 500: ETD44, ETD49 and E55

>500: ETD54, ETD59 and E65

Other Related High Frequency Transformer Parameters:

Table1: EE type Transformer Parameters Wound Core 24V Transformer EE type transformer Part No.

Terminal Pins Dimension mm Type Electrical parameter A B C Inductance Output power(W) EE-8.3 6 8.0 8.0 8.3 V 100.0uH 0.2-3.0 EE-10 8 11.5 10.2 10.2 V 80.0uH 0.5-5.0 EE-13 10 12.0 12.5 13.0 V 120.0uH 0.5-8.0 EE-16-1 6 14.8 13.3 16.0 V 90.0uH 1.0-10.0 EEL-16 10 28.5 16.0 21.9 V 600.0uH 2.0-15.0 EE-19-1 8 17.6 16.0 19.0 V 800.0uH 3.0-30.0 EEL19 10 31.5 16.0 21.1 V 1200.0uH 3.0-30.0 EE-25-1 6 20.0 18.2 25.2 V 2000.0uH 3.0-45.0 EEL25 8 35.3 17.5 25.2 V 2800.0uH 3.0-45.0 EE-30 10 21.0 29.2 30.0 H 900.0uH 3.0-50.0 EE-40 14 27.6 30.5 40.0 H 1500.0uH 3.0-55.0 EE-42/15-1 12 33.8 44.0 42.0 H 2000.0uH 3.0-80.0 EE-42/20-1 12 45.0 39.8 42.0 V 1900.0uH 3.0-90.0 EE-55 20 50.0 50.0 55.0 H 3000.0uH 3.0-150.0 EE-65 16 55.2 51.8 65.0 H 4500.0uH 3.0-300.0 Table2: EPC type Transformer Parameters Model Dimension (mm) VA Weight A B C f=50KHz f=100KHz g EPC-9.5 10 5.5 10 1.1 2.5 9 EPC-13 14 9 14 5 8 11 EPC-17 19 11 18 14 20 18 EPC-19 20 13 21 18 27 21 EPC-25 27 17 26 36 59 29 EPC-27 29 17 36 52 75 35 Table3: ER type Transformer Parameters

Wound Core 24V Transformer ER Transformer Specification Model PIN Dimension A B C+/-0.5 D+/-0.5 E F ER25.5 8 19.5 19.7 12.5 4 5 25.5 ER28 12 30.5 23 17.5 4 5 31 ER28 12 23.1 28.2 25 4 5 29.1 ER28 12 36 27 20 4 5 30 ER28 12 26.3 37.1 30 4 5 30.2 ER33 14 37.5 28 22.5 4 5 36 ER35 14 43.5 28 22.5 4 5 35.5 ER35 16 29.1 40.3 35.4 4 5 40.3 ER39 16 46 31.1 25 4 5 43.1 ER39 16 33 41.5 30.85 4 7.5 42.3 ER40 16 48 31.1 25 4 5 43.1 ER4215 14 45.5 30 25 4 5 42 ER4220 14 44 37.5 36 4 5 42 Table4: EFD type Transformer Parameters

Wound Core 24V Transformer Model Pin Dimension A B C D E EFD-12 8 6 17 20 3.0 13.5 EFD-15 10 7.3 18.2 21.35 2.5 15 EFD-15 10 7.5 19.3 22.6 3.0 16.7 EFD-20 10 9.4 25.3 27.7 3.75 21.7 EFD-20 12 9.7 24 26.8 3 20 EFD-25 10 13.4 29.7 35.4 5 25 EFD-25 10 12.6 29.7 31.5 5 25 EFD-30 12 12.6 31.6 35.5 5 30 5)Advantage:

1 - UL, CUL, CE, ISO9001: 2008

2 - We offer custom-made transformers, OEM and ODM are welcome

3 - We deliver the quality you expect at consistently competitive prices

4 - Transformer quality lifetime: 10 Years.

5 - Specialty Sales service: 5 -10 Years

6 - Transformers Test: 100% test before the shipment
