Xen Tcg3880 Thermal Conductivity Gas Sensor - China
price: check with company for price
XEN-TCG3880 Thermal Conductivity Sensor Short description
The XEN-TCG3880 is a thermal conductivity gauge (TCG) made using silicon technology.
The sensor chip consists of a silicon rim of 2.50 x 3.33 mm, 0.3 mm thick, in which a silicon-nitride membrane is created.
In the center is a heater, with a sensor element measuring its temperature.
The chip measures the thermal conductance between the ambient and the center of the mem-brane, and this depends on several parameters, such as pressure, gas type, and material depo-sitions on the membrane.
This dependence upon physical parameters allows the TCG to measure such quantities as absolute pressure, gas mixture composition, and material properties.
/

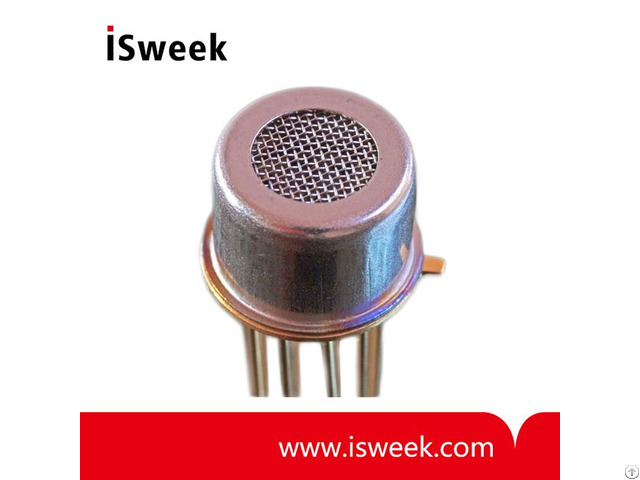

The standard housing for the XEN-TCG3880 is a TO-5 10-pins header, other housings are avail-able on request.
/
The XEN-TCG3880Pt has a class B Pt100 platinum temperature sensor on the TO-5 housing, next to the chip.
/
XEN-TCG3880 Thermal Conductivity Sensor Applications
Gas type measurement:
• Measurement of thermal conductivity
• Measurement of concentration of Helium, CO2, etc, in air
• Measurement of binary gas-mixture composition
Vacuum measurement:
• Vacuum measurement between 10 mPa and 10 kPa
• Sealed gas-enclosure leakage
