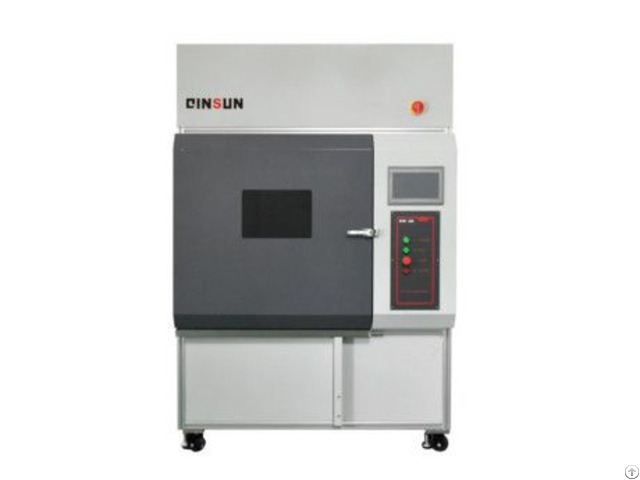

Xenon Lamp Light Fast Test Chamber - China

Xenon lamp light fast test chamber 1 - Introduction: Xenon lamp light tester is also called xenon lamp weather tester, xenon lamp light test machine, etc.

Xenon lamp light tester is used for light fastness and weather fastness test in dye fastness test.

It can be used for light fastness test and light aging test of paints, pigments, coatings, rubber, plastics, wood floors, paper and other materials.

2 - Technical parameters of xenon lamp lightfastness tester: 1 - Working mode: Simulate and strengthen the influence of nature on the measured object, and provide quantitative indicators such as light, temperature, humidity, and rain.

2 - Light source: 2500W air-cooled long arc xenon lamp 3 - Temperature control of test chamber: 25～50℃: resolution: 0.1℃ 4 - Test chamber humidity control: 10～95%RH; resolution: 0.1% 5 - Test time control: 1000h 6 - Irradiance: 200-1200W/M2 (at 280-800nm) adjustable 0.2-0.57 W/M2 (at 340nm) adjustable 0.4-1.22 W/M2 (at 420nm) adjustable 59-61W/M2(at 300-400nm) adjustable 7 - Specimen holders can be installed: GB: 135×45mm 10 AATCC: 100×75mm 5 specimens can be clamped on both sides 8 - Rotation speed of sample holder: revolution 5r/min; rotation 180°/revolution 9 - Separate timing of sample holder: ≤1000h 10 - Standard blackboard thermometer: 40～80℃; resolution: 0.1℃ 11 - Power source: AC220V±10% 50Hz 5.5kW 12 - Dimensions: 1000×550×1570mm 13 - Weight: 220kg 3 - Characteristics of Xenon Lamp Light Tester: 1 - Digital setting of light intensity, real-time monitoring, and automatic adjustment to meet the stability requirements of different standards for test light sources (optional 420nm; 340nm or 300-400nm band monitoring) 2 - Blackboard thermometer (BPT), standard blackboard thermometer (BST), irradiance detector and sample are detected at the same station (equidistant), which truly reflects the tested condition of the sample, and the measured data is wireless 3 - Synchronous transmission of radio frequency technology, after processing by the CPU, it is displayed on the color screen in the form of numbers, graphs, curves, etc., without stopping for observation.

4 - Detection and wireless transmission use light energy conversion technology to provide energy, without the need for additional power supply.

5 - 7-inch color screen display and control, a variety of test monitoring modes (animation, numbers, charts), easy to control, intuitive and clear.

6 - All sample holders can be timed separately, and different samples can be tested on the same machine, which is convenient for test monitoring and reduces operating costs.

7 - Rated 2500W long arc xenon lamp technology, which truly simulates the sunlight spectrum.

8 - Industrial temperature control (refrigeration) system, rapid and stable temperature adjustment in the test chamber.

9 - Ultrasonic humidification and professional dehumidification system ensure accurate and stable test humidity.

10 - Built-in self-circulation system and air filtration system, greatly reducing environmental requirements.

11 - Lamp life: about 1000 hours PS: (WLJCDM809)
