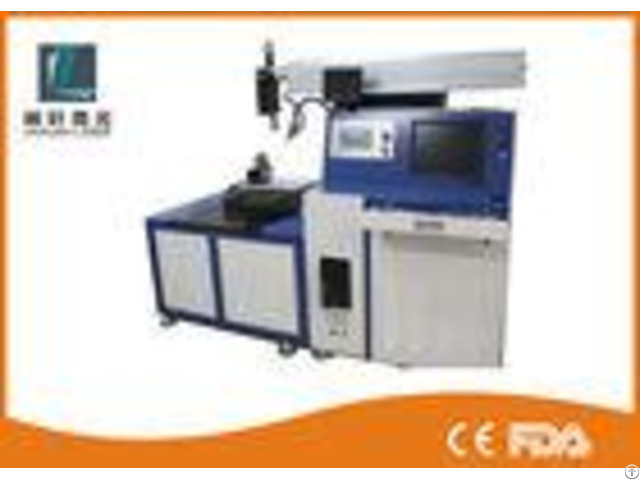

Yag 500w Mold Laser Welding Machine For Module Isolation Hermetic Sealing - China

500w Mold Laser Welding Machine For Module Isolation And Hermetic Sealing Introduction Adopting the Pulsed xenon lamp-pumped Nd: YAG, 1064nm infrared laser of the laser crystal output, arbitrary waveform real-time control of laser power feedback technology, the Laser welder system of our company ensures that the laser power waveform in working condition with good stability and reproducibility.

Products of laser power from 25W to 500W, covering in small, large, power system, basically meet the demand for precision welder of various industries.

Mainly for the welder of thin-walled materials and precision parts our products can realize spot welder, butt welder, stitch welder and seal welder.

With features of depth width ratio, small weld width, small heat-affected zone, small deformation, high welder speed, smooth weld, beautiful appearance, high welder quality, no pores, size-small focal spot, as well as precise positioning, WF series optical fiber laser welder machine can be accurately controlled, and easily realize automatic optical fiber transmission Applications It is widely used in aerospace, sports goods, jewelry, medical, instrumentation, electronics, machinery and molding and auto industry.

Especially in repairing jewelry, watch hairspring, dental, kinescope and etc Characteristic 1 - Laser beam is delivered by the fiber and it is more flexible.

It also can combine with robotic to fulfull customize workpiece.

And automation is available.

2 - 6 fibers delivery can be optional and energy share or time share is available.

3 - CCD coaxial monitor system, it can display and monitor every working station real time.

4 - It can set max.

64 sections of waveshape.

And all the waveshapes can be called from the outside.

Waveshape switching while welding.

It can be suitable for various complicated welding demands.

The laser output power feedback or current feedback can be option part.

Parameter - - - -

Model | LX-D2 | LX-D2 | Wavelength | 1064nm | Pulse width | 0.5ms-20ms | Single pulse energy | 70J | 100J | Max.

output power | 400W | 500W | Spot size | 0.2mm~1.5mm | Welding depth | 1mm | 1.5mm | Frequency | 1Hz-150Hz | Power consumption | 12KW | 16KW | Input power | 380V/ tri-phase /50Hz/40A | - - - -
