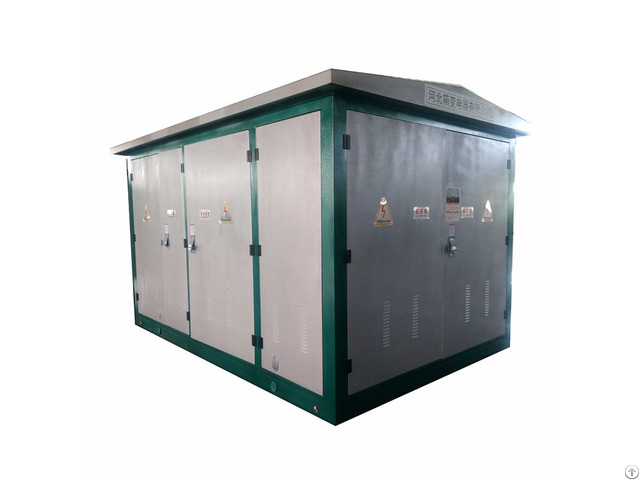

ZBW box-type substation (10KV)

ZBW modular substation series are designed to combine high-voltage electrical equipment, transformers, low-voltage electrical equipment into a compact package of power distribution devices commonly known as the European box-type substation.

The products are suitable for 10KV (6KV) AC 50Hz substations, which are the distribution devices that combine high-voltage switchgear, transformers, and low-voltage switchgear, featured by small footprint, simple installation, safe and reliable performances, easy maintenance and other advantages.

They can be directly connected to loads.

One-time installation is enough to achieve the power transmission purposes.

The combination of multiple units can constitute different power supply modes; therefore, the products are widely used in residential areas, high-rise buildings, tourist attractions, highways, industrial and mining enterprises, oil terminals, rural and rural networks and other places.

Environmental Conditions for Operation

1 - Altitude: ≤ 1000m.

2 - Wind speed: ≤ 34m / s (not more than 700Pa).

3 - Ambient temperature: highest temperature +40 ℃, lowest temperature -35 ℃.

4 - Relative humidity: daily average value of not more than 95%, monthly average value of not more than 95%.

5 - Shockproof: horizontal acceleration not greater than 0.4m / s2, vertical acceleration of 0.15m / s2.

6 - Installation site inclination: not more than 3 °.

7 - Installed in places away from fire or explosion hazards, serious contamination, chemical corrosion and severe vibrations.
