Zero Gain Adjustable Magneto Electric Isolation Transmitter - China

Features:

● Precision grade: 0.1, 0.2, 0.5, nonlinearity grade (in full measuring range) <0.2%.

● Zero, Gain, Full scale calibration are available through external multi-turn potentiometer.

● Isolation power among auxiliary power, analog input, output: 3000VDC

● Auxiliary power: 5V, 12V, 15V, 24VDC, etc.

●Isolation, amplification and conversion among 0-75mV/ 0-5V/ 0-10V/ 0-1mA/ 0-20mA/ 4-20mA analog signal.

● Industrial temperature range: -20 ~ +70 ℃

● Electro-magnetic anti-interference circuits /shielding measures are required in the field with special EMC.

● Low cost, compact SIP 12Pin, UL94V-0 standard flame retardant package.

Applications:

● DC current/voltage signal isolation, conversion and amplification.

● Long-distance isolated transmission of industrial site signals.

● Analog signal GND wire anti-interference and data isolated acquisition.

● Meters, instruments and sensors signal acquisition and transmission.

● Isolated data acquisition of analog signals from PLC, DCS.

● VFD/transducer signal long-distance transmission without distortion.

● Power monitoring control, medical equipments isolated safety bar.

● 4-20mA sensor analog signal 1x2, 2x2, 1x4 isolated amplification and transmission.

Application solutions: U(A): Input Current/Voltage U1：0-5V

U2：0-10V

U3：0-75mV

U4：0-2.5V

U8: Customized A1：0-1mA

A2：0-10mA

A3：0-20mA

A4：4-20mA

A8: Customized P: Auxiliary Power P1：DC24V P2：DC12V 　 P3：DC5V P4：DC15V P8：Customized

O: Output Signal

O1: 4-20mA O2: 0-20mA O3: 4-12-20mA O4: 0-5V O5: 0-10V O6: 1-5V O8: Customized Model Selection Examples:

E.g.1: Input Signal: 0-5V; Auxiliary Power: 24VDC ; Output Signal: 4-20mA; Zero, Full Scale/Gain can be adjusted /Calibrated separately.

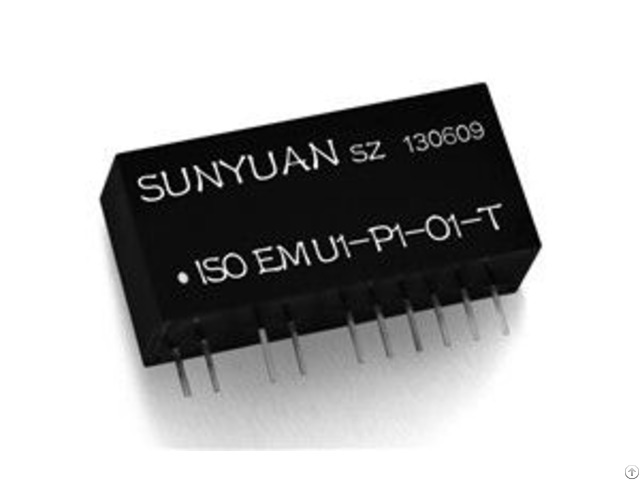

Product Model: ISO EM U1-P1-O1-T

E.g. 2: Input Signal: 4-20mA ; Auxiliary Power: 24VDC ; Output Signal: 4-20mA; Full Scale/Gain can be adjusted /Calibrated separately.

Product Model: ISO EM A4-P1-O1-T
