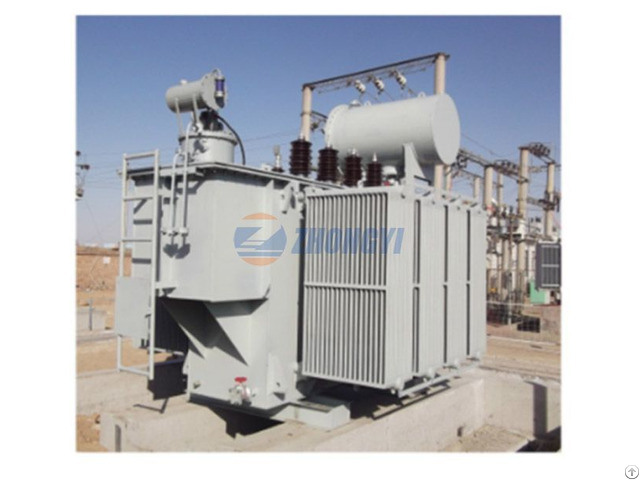

Zs Series Rectifier Transformer - China

ZS Series Rectifier Transformer, oil immersed power transformer, high quality oil transformer, oil immersed power thransformer

Oil Immersed Transformer

Rectifier transformers are widely used in electrolytic electrochemistry, transmission, traction, electrostatic precipitators, DC transmission and other systems which need direct current power supply.

Our rectifier transformer absorbed the excellent experiences of same industry at home and abroad.

Raw materials such as high magnetic silicon steel sheet and high quality oxygen free copper wire are used.

We adopt production technology such as advanced integral assembly per phase for windings, the core are laminated by five step-lap method to reduce iron loss and noise, crimped winding connections, precision machining for tank surface and so on, which make technologic performance at the leading level in domestic.

We can design and manufacture various types of products according to user’s requirement.

Model and Meaning

Technical Parameter of Rectifier Transformer

Model No.

(kVA)Rated capacity Rated Voltage Connection Group Symbol Weight|(kg) (KV)grid side (V)Valve side Weight for Active parts Oil Weight Total Weight

ZSS-400/10 400 10 430 Dyn11 1015 380 1780

ZSS-500/6 500 6.3 400 Dyn11 1420 580 2800

ZSS-630/6 630 6.3 400 Dyn11 1550 620 3040

ZSS-650/3 650 3 3150 Dyn11 1255 540 2460

ZSS-800/6 800 6 400 Dyn11 1576 705 3045

ZSS-1000/6 1000 6 440 Dyn11 1837 838 3580

ZSS-1000/10 1000 10 420 Dyn11 2112 897 3860

ZSS-1250/10 1250 10 440 Dyn11 2205 1090 4410

ZSS-1500/10 1500 10 3300 Dyn11 2860 1205 5260

ZSS-1600/6 1600 6.3 400 Yyn11 2680 1145 5160

ZSS-1600/10 1600 10 420 Dyn11 3110 1150 5500

ZSS-1600/10 1600 10 660 Dd0 2750 1240 5310

ZSS-1750/10 1750 10 6300 Dyn11 2790 1190 5320

ZSS-1800/10 1800 10 650 Dd0 3060 1345 5795

ZSS-1900/10 1900 10 3300 Yd11 3353 1719 7180

ZSS-2000/10 2000 10 660 Dd0 3185 1990 7750

ZSS-2300/10 2300 10 420 Dyn11 3570 1495 7020

ZSS-2400/10 2400 10 750 Dyn11 3635 1535 7185

ZSS-2500/10 2500 10 630 Dyn11 4180 1582 7390

ZSS-2500/6 2500 6.3 630 Dd0 4260 1945 7980

ZSS-2600/10 2600 10 3300 Yd1 3917 2015 8845

ZSS-2700/6 2700 6.3 630 Dyn11 4500 1990 8325

ZSS-2850/10 2850 10 660 Dd0 4240 1810 7910

ZSS-3000/6 3000 6 660 Dd0 4203 1744 7843

ZSS-3150/10 3150 10 630 Dd0 4911 1993 8870

ZSS-3400/6 3400 6 660 Dd0 4733 1933 8706

ZSS-3700/10 3700 10 630 Dyn11 5505 2295 10090

ZSS-4000/10 4000 10 3300 Dd0 5817 2604 11640

ZSS-4650/10 4650 10 1150 Dy5 6185 2800 12000

ZSS-5000/10 5000 10 6600 Dyn11 6800 2750 12600

ZSSFP7300/10 7300 10 6600 Dyn11 9325 3640 16620

ZSSFP8100/10 8100 10 6600 Dyn11 11400 3835 17940

ZSSFP9000/10 9000 10 3300 Yd1 10280 5810 22500

ZSS-10000/10 10000 10 3300 Yd1 11400 6880 25680

ZSSFP-12500/35 12500 35 1130 Dd0 16035 6480 27150

ZSSFP-14000/35 14000 35 900 Dyn11 18030 8235 34290

ZSSFP-16300/35 16300 35 1100 Dyn11 20010 8950 37680
