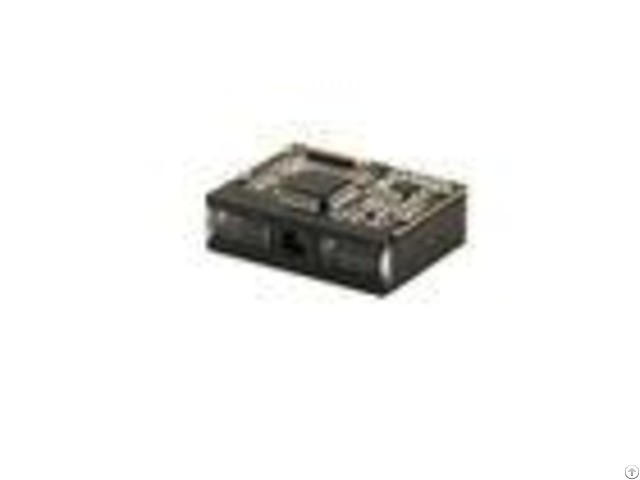

1d Oem Ccd Barcode Reader Module Embedded2500 Resolution 6g Weight - China

price: check with company for price

Scan Modle DE1600 1D OEM CCD Scan Engine Embedded Barcode Scanner Module Product Description DE1600 is a embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system.

It can scan universal 1D barcodes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.

Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

Features Mini size, cost-effective, widely used in PDA, mobile payment machines.

Read all mainstream 1D barcodes in the market easily.

High-performance processor, fast decoding.

(3mil) Simple configuration, support upgrade online.

Interface: USB, TTL.

Support multiple systems and languages, secondary development.

Application Lockers Mobile coupons, tickets Medical research Mobile payment barcode scanning Lottery machines Self-service terminals Queuing calling equipment Self-service vending machines Microcontroller development Parameter - - - - Physical Parameter | | Weight | 6g | Dimension | (L)22.0mm * (W)28.2mm * (H)9.6mm | Interface Type | 12PIN Pitch 0.5 | Communication Mode | USB, TTL | Power Supply | DC 3.3-5V@90mA(work) | Performance | | Scan Type | CCD | Light Source | Visible red light, 62510nm | CPU | 32-bit | Resolution | 2500 | Resolution | 3mil/0.076mm(PCS90%, Code 39) | Decoding speed | 300times/sec | Depth of field | 30mm-700mm | Scan Mode | Manual, Continuous, Auto sense | Scan Angle | Roll30, Pitch50, Skew50(PCS90%, Code 39, 10mil/0.25mm) | Print Contrast Signal | 20% | Ambient Light | Dark, indoor natural light | Symbologies | UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, etc.

| Environmental | | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.2 m | Transport vibration Test | 10H@125RPM | Depth of field | | 4MIL | 100-120mm (PCS90%, Code 39) | 13MIL | 60-240mm (PCS90%, EAN-13) | 20MIL | 70-350mm (PCS90%, Code 39) | 40MIL | 150-500mm (PCS90%, Code 39) | Accessories List | | Cable(Optional) | USB Cable, used to connect the DE1600 to a host device.

RS232 Cable, used to connect the DE1600 to a host device, with USB supply cable.

| Development board( optional) | Equipped with a trigger button, beeper and RS-232 & USB output function.

| Power Adaptor | Output: DC5V 1A, Input: AC100~240V 50~60Hz(serial port optional).

| - - - -


Company Contact:


  • Phone: 86-755-21032537

  • Address: 3/F, Longsheng Times Building, Industrial Road, Longhua District, Shenzhen, 518000, China​​​​​​†‹, Shenzhen , Guangdong , China

  • Email: Email

Published date: March 6, 2018

  • Business Description: All products pass CE, ROHS, FCC, ISO9001, ISO14001, Grade I National Standard for Laser Safty certification, etc.

    Widely used in industry, commerce, transportation, finance, medical and health, tobacco industry, mobile payment and office automation.
