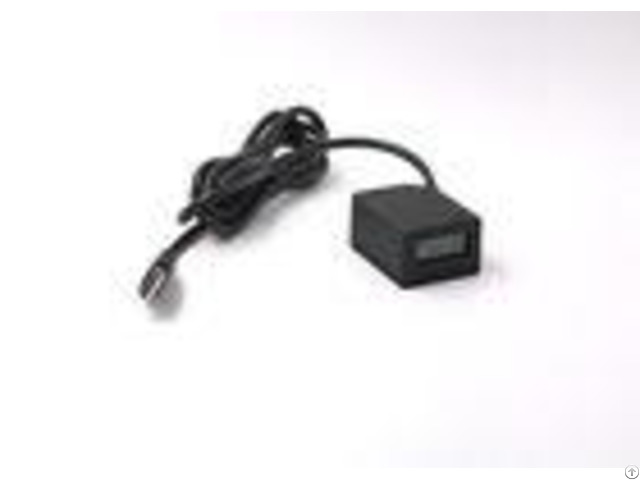

2d Usb Embedded Fixed Mount Scanner 640 480 Resolution Cmos Scan Type - China
price: check with company for price
2d USB Embedded Fixed Mount Scanner 640*480 Resolution CMOS Scan Type - - - - Physical Parameter | | Weight | 80g(USB) | Dimension | (L)49.2mm * (W)37.5mm * (H)25.0mm | Interface Type | USB, DB9 | Communication Mode | USB(USB-KBW, USB-COM), RS232 | Power Supply | DC 5V@280mA(work) | Performance | | Scan Type | CMOS | Light Source | Red light LED 62510nm(aiming), 6500K LEDs(lighting) | CPU | 32-bit | Resolution | 640*480 | Resolution | 4mil/0.1mm(PCS90%, Code 39) | Scan Tolerance | 60CM/S | Depth of field | 30mm-600mm | Scan Mode | Manual, Auto sense | Scan Angle | Roll360, Pitch60, Skew60(PCS90%, Code 39, 10mil/0.25mm) | Print Contrast Signal | 20% | Ambient Light | Dark environment, indoor natural light | Symbologies | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), MSI Plessey, RSS, China Post, Telepen, etc.
2D: QR Code, Data Matrix, PDF417, Maxicode, Aztec, Hanxin, OCR, etc.
| Environmental | | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.5 m | Transport vibration Test | 10H@125RPM | Depth of field | | 4MIL | 80-120mm (PCS90%, Code 39) | 13MIL | 80-350mm (PCS90%, EAN-13) | 20MIL | 60-450mm (PCS90%, Code 39) | 40MIL | 180-600mm (PCS90%, Code 39) | 20MIL | 30-250mm (PCS90%, QR Code) | Accessories List | | Cable (non-removable) | USB Cable, used to connect the DF4100 to a host device.
| RS232 Cable, used to connect the DF4100 to a host device, with USB supply cable.
| - - - -
Company Contact:
- Phone: 86-755-21032537
- Address: 3/F, Longsheng Times Building, Industrial Road, Longhua District, Shenzhen, 518000, China​​​​​​†‹, Shenzhen , Guangdong , China
- Email:
Published date: March 6, 2018
- Business Description: All products pass CE, ROHS, FCC, ISO9001, ISO14001, Grade I National Standard for Laser Safty certification, etc.
Widely used in industry, commerce, transportation, finance, medical and health, tobacco industry, mobile payment and office automation.
