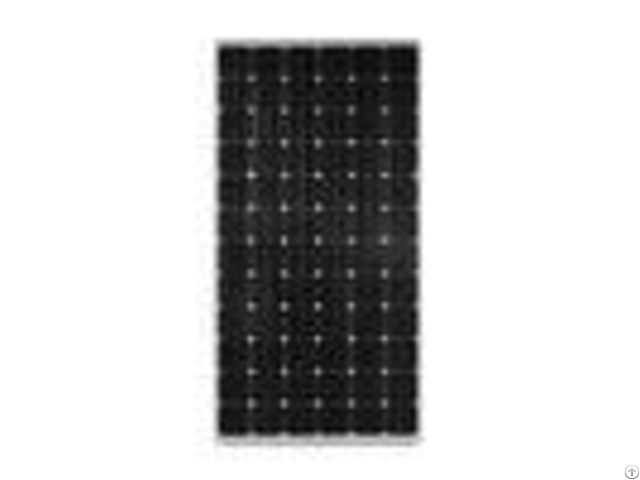

36v 350w High Reliable Photovoltaic Solar Panel Golf Cart Roof For Power Station - China
price: check with company for priceA Grade Monocrystalline Solar Panel300w 36V mono pv panel with CE RoHS TUV Specification of this monocrystalline solar panel: - - - - 100Watt Monocrystalline Solar Panel | Mechanical Characteristics | Characteristics | SN-M300 | Power Tolerance | 3 % | Maximum Power(Pmax) | 300Wp | Maximum Series Fuse Rating | 15A | Optimum Operating Voltage/Vmp | 36.0V | Maximum System Voltage | 1000V DC | Optimum Operating Current/Imp | 8.33A | Operating Module Temperature | -40C to +80C | Open Circuit Voltage /Voc | 43.2V | Frame Material | Clear Anodized aluminum Frame | Short Circuit Current /Isc | 9.13A | Thickness of glass | 3.2mm tempered glass | Module Efficiency | 15.54% | Frame | Anodized aluminum alloy | Weight | 22Kg | Laminating material | EVA | Numbers of cells | 72(6*12) | Backsheet material | TPT | Cell dimension | 156*156mm | Junction box | Ip65 | Dimensions(mm) | 1950*990*40mm | | | Standard test condition | Irradiance 1000W/m, Module temperature 25, AM=1.5 | | | - - - - GLASS > Antireflective glass > Translucency of normal luminance is increased by 2% > Module efficiency is increased by 2% > Self-cleaning function > Service life is as long as 25 years(30 years optional) FRAME > Conventional frame > Silver or black frames are optional > Boost bearing capability and prolong service life > Serra-clip design tensile strength > Seal-lip designglue injection SOLAR CELL > High Efficiency PV Cells > Appearance Consistency > Color sorting ensure consistent appearance on each module > Anti-PID JUNCTION BOX > Conventional standalone edition and engineering custom edition > Quality diode ensures module running safety > IP65 Protection level > Heat dissipation > Long service life Pictures:
Company Contact:
- Posted By: Shenzhen Shine Solar Co., Ltd.
- Phone: 86-755-23129901
- Address: 5F TONGFANG CENTER, ZHONGXIN ROAD, SHAJING TOWN, BAOAN DISTRICT SHENZHEN CHINA., Shenzhen , Guangdong , China
- Email:
Published date: April 2, 2018
- Business Description: Shenzhen Shine Solar Co., Ltd was founded in 2009, which is one of the few PV manufacturers with an integrated industrial chain in Shenzhen.
It's mainly engaged in the manufacture of highly efficient PV glass solar panels and flexible solar panels.
