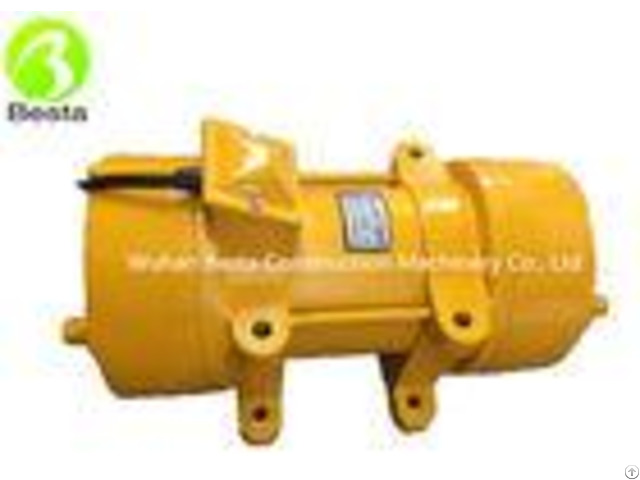

8kg Attachable Electric External Concrete Vibrator Motor 0 5kw Zf - China

Application: Widely used in construction, transportation, water conservancy, port, mine and metallurgy, etc.

Used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible.

It can be adapted to every type of application, vibrator heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job.

Our electric concrete vibrator motor concrete table vibrator with cheap price is a type of vibration motor, the eccentric block and a motor power fit each single or three phase asynchronous motor rotor shaft which are arranged on both ends, the centrifugal force generated by the rotation of the eccentric block vibration force, drive the whole body vibration.

Concrete plate vibrator attached on the surface of concrete compaction, leveling instrument, operation at the bottom of the ZFplate vibrator installation of a plate, attached to the surface of plate and concrete, the excitation force is transmitted to the concrete mixture.

- - - - Model | Power Supply | Output Power | Vibrating Amplitude | Centrifugal Force | Current | Weight | | V/Hz | kW | mm | kN | A | kg | ZFT3 | 380/50 | 0.03 | 1.5 | 0.3-0 | 0.15 | 4.4 | ZFT9 | 380/50 | 0.09 | 2.1 | 1-0 | 0.19 | 4.4 | ZF18 | 380/50 | 0.18 | 2.3 | 1 | 0.37 | 7.5 | ZF25 | 380/50 | 0.25 | 1.8 | 1.8 | 0.67 | 12 | ZF55 | 380/50 | 0.55 | 1.64 | 4.15 | 1.3 | 21.5 | ZF80 | 380/50 | 0.8 | 2 | 2.6 | 1.74 | 27 | ZF110 | 380/50 | 1.1 | 2 | 4.3 | 2.52 | 27 | ZF150 | 380/50 | 1.5 | 2.4 | 8.3 | 3.18 | 38 | ZF220 | 380/50 | 2.2 | 2.2 | 10 | 4.6 | 46 | ZF300 | 380/50 | 3 | 2.2 | 14 | 6.4 | 57 | - - - -

Company Contact:

• Posted By: Wuhan Besta Construction Machinery Co., Ltd.

• Phone: 86-27-87166663

• Address: No.634 Xionchu Avenue, Hongshan District, Wuhan City, China, Wuhan , Hubei , China

• Email:

• Website: https://www.building-constructionmachines.com

• Business Description: WUHAN BESTA CONSTRUCTION MACHINERY CO., LTD. is located in middle of China, a beautiful city called WUHAN, which is one of the main hubs of transportation in China.

  We have been engaging in manufacturing and sales of construction machinery since 1994.
