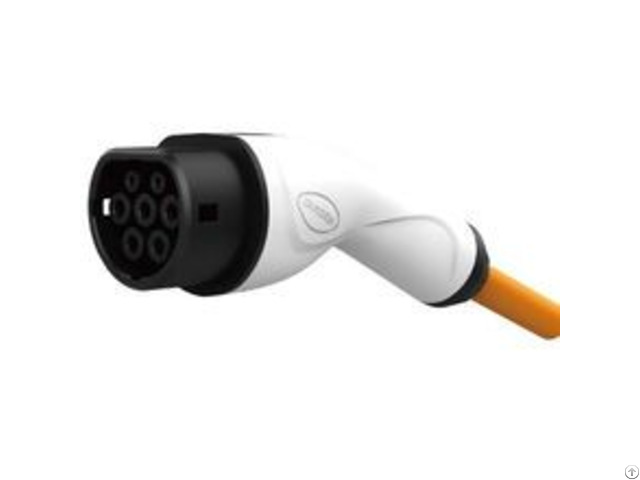

Ac Pile End Electric Vehicle Charging Plug - China
price: 5.00 Dollar US$
Features 1 - Meet 62196-2 IEC 2010 SHEET 2-IIb standard
2 - Nice appearance, hand-held ergonomic design, easy plug
3 - Safety pins insulated head design to prevent accidental diirecrt contact with staff
4 - Excellent protection performance, protection grade IP55(working condition)
Mechanical properties 1 - Mechanical life : no-load plug in/pull out＞10000 times
2 - Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Electrical Performance 1 - Rated current：10A/16A/32A
2 - Operation voltage： 250/415V
3 - Insulation resistance：＞1000MΩ(D C500V)
4 - Terminal temperature rise：＜50K
5 - Withstand Voltage：2000V
6 - Contact Resistance： 0.5mΩ Max
Applied Materials 1 - Case Material: Thermoplastic, flame retardant grade UL94 V-0
2 - Pin：Copper alloy, silver + thermoplastic on the top
Environmental performance 1 - Operating temperature: -30°C~+50°C
Company Contact:
- Posted By: Hangzhou Assem Electronics Co.,Ltd
- Phone: 0086-571-85779048
- Address: No.609 Jintang Road,Floor 3, Building 1, Jiangnan Town, Tonglu County, Hangzhou, China., Hangzhou , Zhejiang , China
- Email:
Published date: November 10, 2020
- Business Description: Established in 2007,Assem company is an ISO9001: 2015 certified OEM/ODM provider of cable assemblies and wire harnesses.
All the items we delivery are compliant with the RoHs and WEEE
Directives.
Both small and large orders are guaranteed to be shipped within 4 weeks.
Contact us today to discuss your requirements.
We offer: Automotive wire harness Data and Communication cable Medical wire harness Computer & Network cable
Home Appliance wire harness Power cord
Industrial & Heavy Duty wire harness
