Cement Industries Welded Plate Heat Exchanger Nickel Based Alloy - China
price: check with company for price

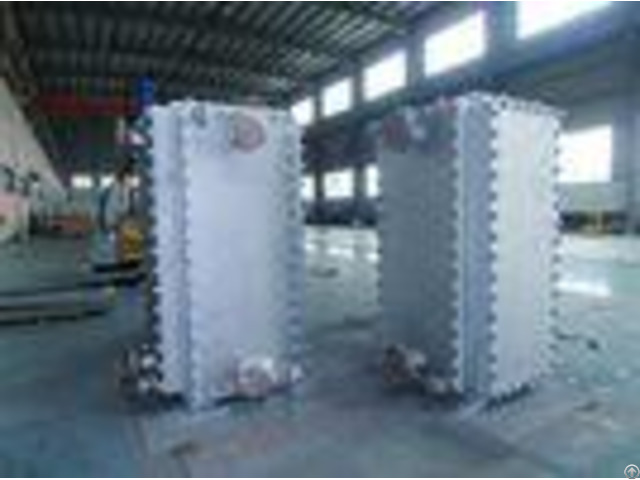

Cement Industries Welded Plate Heat Exchanger Nickel Based Alloy Block-type Fully Welded Plate Heat Exchanger This type of heat exchanger comprises fully-welded corrugated plate sheet bundle framed with 4 columns and 6 plates bolted together.
Advantages * Fully-welded & non-gasket connected plate bundle structure, bolt-mounted frame; * Working condition: up to 400 C / 4.0Mpa; * Heat transfer coefficient: up to 2-4 times higher than the conventional tube & shell heat exchanger; * Low fouling & less maintenance, compact structure & small space occupied; * Easy cleaning and maintaining.
Specification: - - - - Model | QYB30 | QYB40 | QYB50 | QYB75 | QYB120 | Max numbers of plate sheet | 160 | 200 | 300 | 5000 | 500 | Max area of heat exchange (m2) | 21 | 70 | 120 | 340 | 818 | Max Overall Dimension (L x W x H in mm) | 500x500x1200 | 600x600x1500 | 800x800x2000 | 1000x1000x3500 | 2200x2200x3500 | Max Weight (Kg) | 2000 | 10000 | 15000 | 25000 | 50000 | Thickness of plate sheet | 0.8 / 1.0 / 1.2 | Material | SUS316L / SMO254 / Titanium | - - - - SMDERI provides design, fabrication, technical support based on customer's technical information and requirement.
High quality, competitive price and excellent service are what we follow up.
Company Contact:
- Phone: 86-21-51151156
- Address: No. 3111, Huaning Road, Shanghai, 201108, P. R. China, Shanghai , Shanghai , China
- Email:
- Website: https://www.elevatedflaresystem.com
Published date: April 3, 2018
- Business Description: Shanghai Marine Diesel Engine Research Institute (hereafter called as SMDERI) located in Shanghai, P.
R.
China was founded in 1963 and under the jurisdiction of China Shipbuilding Industry Corporation and now is the sole national level research center on marine diesel engines in China.
