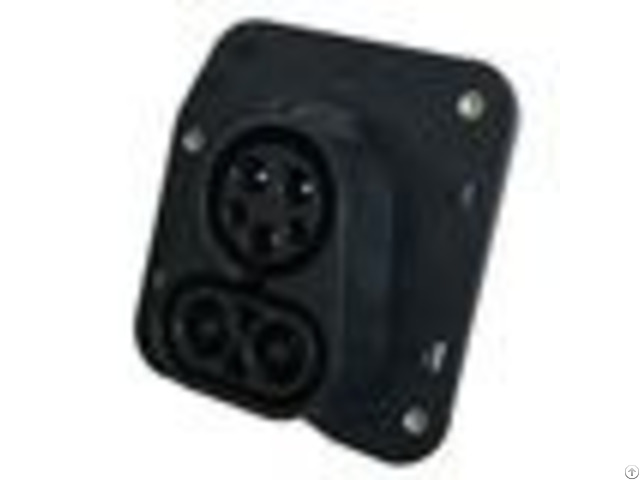

Combo 1 Ev Charging Socket Conforms To Sae J1772 2016 Standard - China
price: 5.00 Dollar US$
Quick Details
Place of Origin: Zhejiang, China
Brand Name: Assem
Model Number: ASEVC-36
Product Name: COMBO 1 EV charging socket
Application: Electric vehice electrical connection
eatures 1 - Charging socket conforms to SAE J1772-2016 standard
2 - Concise appearance, support back installation
3 - Safety pins insulated head design to prevent accidental direct contact with staff
4 - Overall product protection level 3S, Back protection class IP65 Mechanical properties 1 - Mechanical life : no-load plug in/pull out＞10000 times Electrical Performance 1 - DC input: 80A/150A/200A 600V DC
2 - AC input: 16A/32A/60A 240/415V AC 3 - Insulation resistance：＞2000MΩ(D C1000V)
4 - Terminal temperature rise：＜50K
5 - Withstand Voltage：3000V
6 - Contact Resistance： 0.5mΩ Max Applied Materials
1 - Case Material: Thermoplastic, flame retardant grade UL94 V-0
2 - Pin：Copper alloy, silver + thermoplastic on the top Environmental performance 1 - Operating temperature: -30°C~+50°C
Company Contact:
- Posted By: Hangzhou Assem Electronics Co.,Ltd
- Phone: 0086-571-85779048
- Address: No.609 Jintang Road,Floor 3, Building 1, Jiangnan Town, Tonglu County, Hangzhou, China., Hangzhou , Zhejiang , China
- Email:
Published date: November 10, 2020
- Business Description: Established in 2007,Assem company is an ISO9001: 2015 certified OEM/ODM provider of cable assemblies and wire harnesses.
All the items we delivery are compliant with the RoHs and WEEE
Directives.
Both small and large orders are guaranteed to be shipped within 4 weeks.
Contact us today to discuss your requirements.
We offer: Automotive wire harness Data and Communication cable Medical wire harness Computer & Network cable
Home Appliance wire harness Power cord
Industrial & Heavy Duty wire harness
