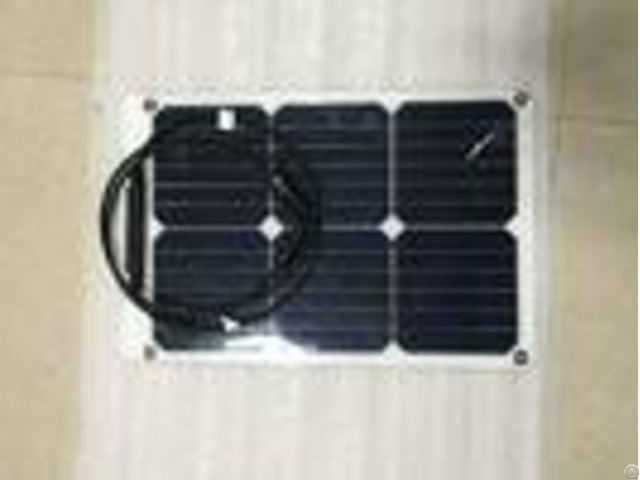

Custom Size Sunpower Flexible Solar Panels 18w 12v With Ce Lvd Sgs Certification - China
price: check with company for price
Custom Size Sunpower Flexible Solar Panels 18W 12V With CE, LVD, SGS Certification The Semi-Flexible solar panel are made by the high efficiency solar cell, it widely apply for the outdoor sports, travel, camping, etc.
The solar panel 12V can as the battery charger, 18650 battery charger, AA/AAA rechargeable charger and the USB/car charger.
After connecting the controller, the solar panel can charging the cell phone, laptop, iphone, ipad, mobile phone, etc.
Feature: ** Highest efficiency available - genuine A Grade Maxeon Gen III cells are supplied directly by Sunpower to our manufacturer *** IV curve test with flash sun simulator checks that the panel outputs the rated power.
*** PET top layer for UV protection *** Textured surface for robustness *** Lightweight *** Install using double sided high bond tape or adhesive sealant.
*** Eyelets are optional.
18W Flexible solar panel: # Size: 434*277*3MM # Material: SunPower Monocrystalline Silicon # Number of Cells: 32PCS # Max.
Power: 18W # Nominal Capacity: 18W # Pmax(Power at Maximum under STC): 18W # Ipm(Current at Max Power, A): 0.93A # Vmp(Voltage at Max Power, V): 19.4V # Voc(Voltage at Open Circuit, V): 23.6V # Isc(Current at Short Circuit, A): 1.05A # STC(Standard Testing Condition): 1000W/Square Meter AM=1.5 25 C Degree # Max System Voltage: 700VDC # Connection Method: 0.9M Cable with terminals # Solar Cell Efficiency: 22.0% # Customized: Yes Other model and wattage: - - - - Sunpower Semi-Flexible Solar Panel | MODEL | PM/W | VOC/V | ISC/A | VMP/V | IMP/A | N/W(kg) | DIMENSION (mm) | SN-H18W | 18.00 | 23.70 | 1.03 | 19.40 | 0.93 | 0.32 | 434*277*3 | SN-H20W | 20.00 | 25.00 | 1.05 | 20.80 | 0.96 | 0.36 | 455*277*3 | SN-H25W | 25.00 | 21.60 | 1.50 | 18.00 | 1.40 | 0.45 | 560*277*3 | SN-H30W | 30.00 | 21.20 | 1.83 | 17.60 | 1.70 | 0.54 | 535*378*3 | SN-H50W | 50.00 | 21.20 | 3.05 | 17.60 | 2.84 | 0.90 | 545*535*3 | SN-H60W | 60.00 | 21.00 | 3.84 | 17.50 | 3.43 | 1.08 | 725*535*3 | SN-H90W | 90.00 | 18.50 | 6.30 | 15.20 | 5.90 | 1.60 | 920*540*3 | SN-H100W | 100.00 | 21.60 | 5.97 | 17.80 | 5.62 | 1.80 | 1050*540*3 | SN-H110W | 110.00 | 23.70 | 5.91 | 19.80 | 5.56 | 1.98 | 1175*540*3 | SN-H120W | 120.00 | 26.40 | 5.87 | 22.00 | 5.45 | 2.16 | 1305*540*3 | SN-H135W | 135.00 | 29.50 | 5.82 | 24.90 | 5.45 | 2.43 | 1435*540*3 | SN-H150W | 150.00 | 32.00 | 5.90 | 27.40 | 5.50 | 2.70 | 1300*660*3 | SN-H180W | 180.00 | 40.00 | 6.00 | 33.00 | 5.45 | 3.24 | 1300*800*3 | SN-H200W | 200.00 | 42.00 | 6.30 | 35.00 | 5.70 | 3.60 | 1435*800*3 | SN-H220W | 220.00 | 48.30 | 5.90 | 39.80 | 5.45 | 3.96 | 1560*800*3 | SN-H250W | 250.00 | 54.00 | 6.10 | 45.00 | 5.60 | 4.50 | 1810*800*3 | SN-H300W | 300.00 | 66.00 | 6.50 | 55.00 | 5.45 | 5.40 | 1810*920*3 | - - - - Pictures
Company Contact:
- Posted By: Shenzhen Shine Solar Co., Ltd.
- Phone: 86-755-23129901
- Address: 5F TONGFANG CENTER, ZHONGXIN ROAD, SHAJING TOWN, BAOAN DISTRICT SHENZHEN CHINA., Shenzhen , Guangdong , China
- Email:
Published date: April 2, 2018
- Business Description: Shenzhen Shine Solar Co., Ltd was founded in 2009, which is one of the few PV manufacturers with an integrated industrial chain in Shenzhen.
It's mainly engaged in the manufacture of highly efficient PV glass solar panels and flexible solar panels.
