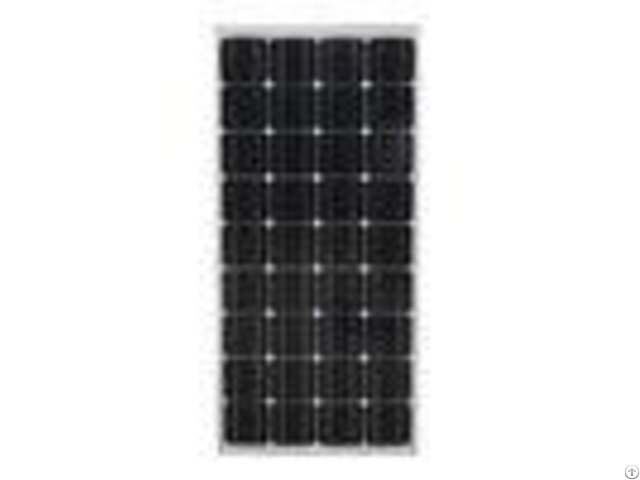

Customizable Monocrystalline Solar Panel 150w 12v With Tuv Certificatied - China

fast delivery china TUV certificatied 150W 12V Monocrystalline Solar panel - - - - 160-230Watt Monocrystalline Solar Panel | Characteristics | SN-M160 | SN-M170 | SN-M180 | SN-M190 | SN-M200 | SN-M210 | SN-M220 | SN-M230 | Maximum Power(Pmax) | 160Wp | 170Wp | 180Wp | 190Wp | 200Wp | 210Wp | 220Wp | 230Wp | Optimum Operating Voltage/Vmp | 18.0V | 36.0V | 36.0V | 36.0V | 36.0V | 27.0V | 27.0V | 27.0V | Optimum Operating Current/Imp | 8.89A | 4.72A | 5.00A | 5.28A | 5.56A | 7.78A | 8.15A | 8.52A | Open Circuit Voltage /Voc | 21.6V | 43.2V | 43.2V | 43.2V | 43.2V | 32.4V | 32.4V | 32.4V | Short Circuit Current /Isc | 9.78A | 5.32A | 5.6A | 5.88A | 6.16A | 8.38A | 8.75A | 9.12A | Module Efficiency | 16.13% | 17.14% | 14.10% | 14.88% | 15.67% | 16.10% | 16.83% | 17.61% | Weight | 11Kg | 11Kg | 14Kg | 14Kg | 14Kg | 14.5Kg | 14.5Kg | 14.5Kg | Numbers of cells | 36(4*9) | 36(4*9) | 72(6*12) | 72(6*12) | 72(6*12) | 48(8*6) | 48(8*6) | 48(8*6) | Cell dimension(mm) | 156*156 | 156*156 | 125*125 | 125*125 | 125*125 | 156*156 | 156*156 | 156*156 | Dimensions(mm) | 1480*670*35 | 1580*808*35 | 1320*990*35 | Standard test condition | Irradiance 1000W/m, Module temperature 25, AM=1.5 | - - - - - - - - Mechanical Characteristics | | | Power Tolerance | 3 % | Maximum Series Fuse Rating | 15A | Maximum System Voltage | 1000V DC | Operating Module Temperature | -40C to +80C | Frame Material | Clear Anodized aluminum Frame | Thickness of glass | 3.2mm tempered glass | Frame | Anodized aluminum alloy | Laminating material | EVA | Backsheet material | TPT | Junction box | Ip65 | - - - -

Company Contact:

• Posted By: Shenzhen Shine Solar Co., Ltd.

• Phone: 86-755-23129901

• Address: 5F TONGFANG CENTER, ZHONGXIN ROAD, SHAJING TOWN, BAOAN DISTRICT SHENZHEN CHINA., Shenzhen , Guangdong , China

• Email:

• Website: https://www.rvflexiblesolarpanels.com

• Business Description: Shenzhen Shine Solar Co., Ltd was founded in 2009, which is one of the few PV manufacturers with an integrated industrial chain in Shenzhen.

  It's mainly engaged in the manufacture of highly efficient PV glass solar panels and flexible solar panels.
