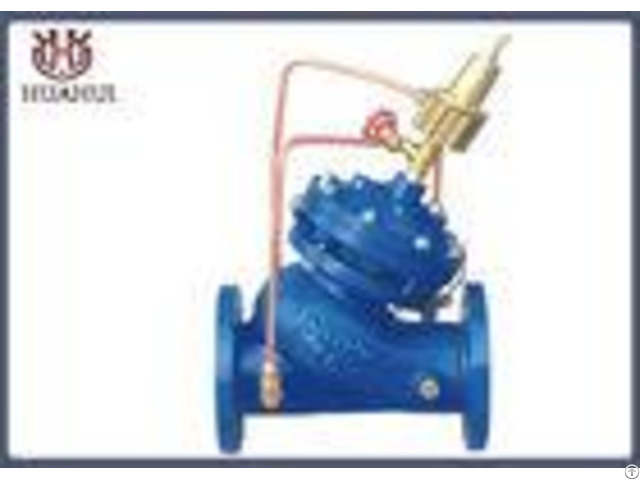

Di Body 2 Inch Control Valve Reducing Pressure For Water Iso9001 Certification - China

AX742X pressure relief valve of hydraulic control valve double flange DI body 1 - Main material - - - - Body | Fine iron | Film | Acrylic cord lining NBR | Stem | Stainless steel 2CR13 | Pad | NBR | Spring | Stainless steel 2CR13 | Pilot valve | Brass | - - - - 2 - Technical parameters - - - - 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | Valve length L: | 235 | 235 | 250 | 285 | 365 | 365 | 455 | 580 | 650 | 800 | Valve height H: | 395 | 395 | 415 | 455 | 485 | 495 | 555 | 670 | 725 | 755 | Valve width K: | 235 | 235 | 235 | 265 | 290 | 300 | 340 | 460 | 500 | 580 | Temperature | 80C | For media | Water, corrosive fluid with low gas | Performance Testing | SealPN=1.1MPA/1.76MPA | StrengthPN=1.5MPA/2.4MPA | Working pressure | 1/8-7/8Source pressure (the lowest 0.05MPA) | | Connection Standard | GB4216-1992 | - - - - Installed in a pipeline of high-rise buildings, fire water supply system and water supply system, the feed line pressure exceeds the set pressure relief valve, pressure relief valves automatically open the quick relief to protect the safety of the pipeline, but also for holding pressure valve to protect the water supply upstream of the main valve pressure.

Able to accurately maintain the same security set pressure, once the overpressure relief valve is rapidly opened, and timely relief.

Close smooth and reliable, eliminating pressure aftermath.

The main technical parameters Model: AX742X Diamete: DN50-DN600 Nominal pressure: PN16 Regulator range : 0.12-1 .

4 MPa Medium temperature : 0-80 Suitable medium: water Material: ductile iron
