Product Description

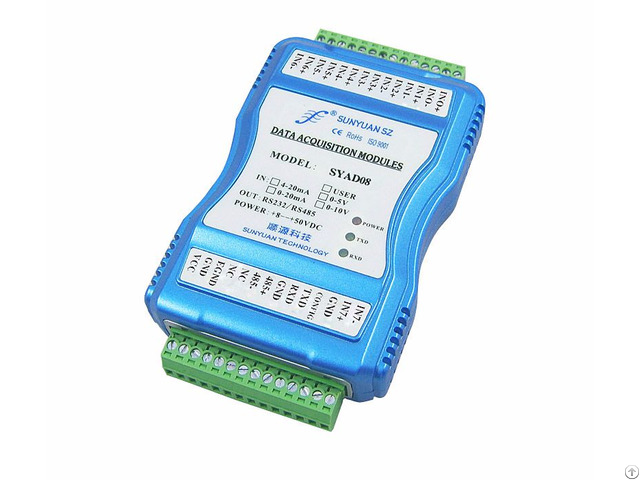

8-ch 4-20mA/0-10V to RS232/RS485 Isolated Converter(non-isolation among each channel )

Model Selection Guide: SY AD08 U(A)□ U/A: Input Voltage / Current Signal Value U1：0-5V A1：0-1mA U2：0-10V A2：0-10mA U3：0-75mV A3：0-20mA U4：0-2.5V A4：4-20mA U5：0-±5V A5：0-±1mA U6：0-±10V A6：0-±10mA U7：0-±100mV A7：0-±20mA U8：Customized A8：Customized

Note: SYAD08 series modules support both RS232 and RS485 communication interface.

User can choose the communication interface according to the application environment, and at the same time only one interface works, otherwise it may interference with each other.

E.

g: SY AD08A4 Means 8-channel 4-20mA signal input, RS232/RS485 output SY AD08A7 Means 8-channel 0-±20mA signal input, RS232/RS485 output SY AD08U1 Means 8-channel 0-5V signal input, RS232/RS485 output ISOAD A08 General Parameter：

(typical @ +25℃, Vs is 24VDC)

Input: Current/Voltage input

Accuracy: 0.05%

Input Imbalance: ±0.1 uA/℃

Temperature Drift: ±15 ppm/℃ (±30 ppm/℃, Max.

)

Input Resistance: 50Ω (4-20mA/0-20mA/0-±20mA current input) 100Ω (0-10mA/0-±10mA current input) 1KΩ (0-1mA/0-±1mA current input) >1MΩ(Voltage input) Band width: -3 dB 10 Hz

Switching rate: 10 Sps

Common mode restraint (CMR): 120 dB(1kΩ Source Imbalance @ 50/60 Hz)

Normal mode restraint (NMR): 60 dB (1kΩ Source Imbalance @ 50/60 Hz)

Input terminal protection: over-voltage / over-current protection

Communication: Protocol RS-485 or RS-232；ASCII character protocol and MODBUS RTU communication protocol.

Baud rage(300bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400bps)(can be set through software).

Address: (00H~FFH)can be set through software

Synchronous Acquisition：support

Response time: 100 ms Max.

Operation Power Supply：+8 ～ 50 VDC wide range power, internal anti-inverse connection and over-voltage protection circuit.

Power Consumption：≤1W

Operation Temperature：- 45 ~ +80℃ Operation Humidity：10 ~ 90% (no dew)

Storage Temperature：- 45 ~ +85℃ Storage Humidity：10 ~ 95% (no dew) Isolation Withstand Voltage： 3KVDC between input and output, 1 minute, stray current 1mA, Output and power are common-ground

Endure Impact Voltage： 3KVAC, 1.2/50us(peak value)

Dimension：83mm x 37 mm x 51 mm

Weight：about 72g
