Dr9074 5g Pn02 1 Qualcomm Atheros Qcn9074 5ghz Max 23dbm Per Chain Up To 4949mbps - China

price: 200.00 Dollar US$

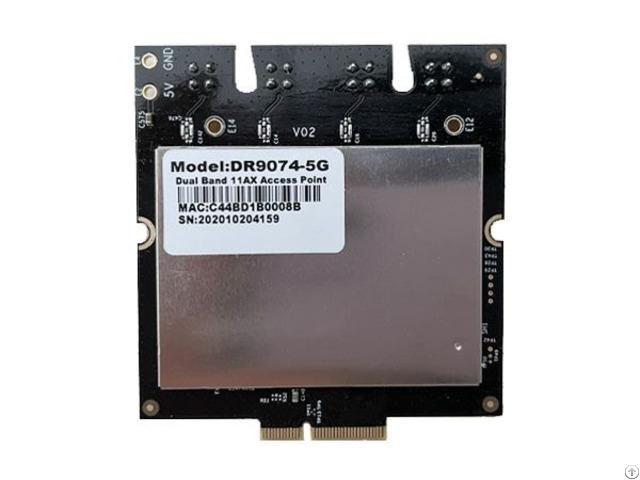

Dr9074 5g Pn02 1 Qualcomm Atheros Qcn9074 5ghz Max 23dbm Per Chain Up To 4949mbps

Products Photos Catalog Dr9074 Pn02 Qualcomm Photos Catalog

.

Features Single Band 5GHz 4x4 WiFi 6 (802.11ax) 4 spatial streams (4SS)

M.

2 E Key Interface

PCI Express 3.0 Interface Supports Dynamic Frequency Selection (DFS)

Absolute Maximum Rating Parameter Rating Unit

Operating Temperature Range -20 to 70 ºC

Storage Temperature Range -40 to 90 ºC

Operating Humidity Range 5 to +95 (non-condensing) %

Storage Humidity Range 0 to +90 (non-condensing) % Hardware Specifications Symbol Parameter

Chipset Qualcomm Atheros QCN9074

WLAN Host Interface PCI Express 3.0 Interface

System Memory 2Mbit serial I²C bus EEPROM

Standard Operating Voltage 5V

Operating Systems QSDK

Host Interface M.

2 E Key

Antenna Cable / Port 4 x MMCX Connectors, 4T4R

Frequency Range 5.15GHz-5.95GHz

Data Rates for WALN 5GHz, max 23dBm per chain, up to 4949Mbps

Channel Spectrum Widths for WLAN Support 20/40/80/160MHz at 5GHz

Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM

Temperature Range Operating: -20°C to 70°C, Storage: -40°C to 90°C

Humidity Operating: 5% to 95% (non-condensing), Storage: Max.

90% (non-condensing)

Certification TBD

Power Consumption TBD

Reference Design PN02.1

Dimensions (WxHxD) 57mm x 63mm x 6mm


Company Contact:


  • Phone: 17366272175

  • Address: 116 ChengYang Road, XiangCheng District, SuZhou City, JiangSu Province, China

  • Email: Email


Published date: January 11, 2022

  • Business Description: The company utilizes its own professional knowledge and the top research and development team unceasingly breaks through, we have the hardware, the software, the RF, the antenna, the enclosure and so on design ability.

    To provide customers with customized services, products from Design - Test -Certification - Production of one-stop convenient services.
