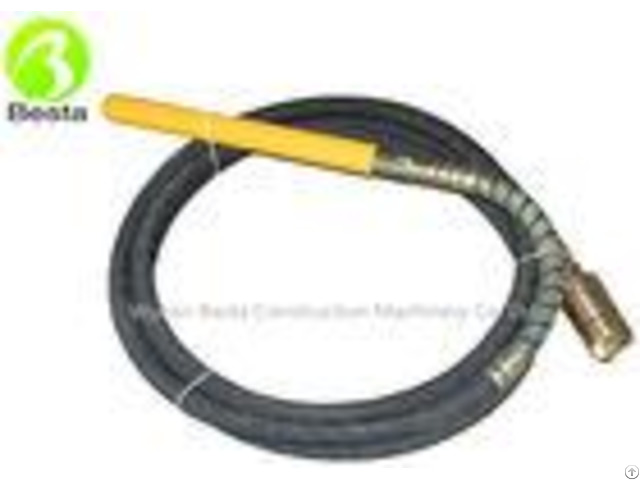

Electric Or Gasoline Concrete Vibrator Needle 25mm 1 Inch Iso9001 Certification - China

Highlights: 1 - High strength rubber hose with many layers, such as 65Mn steel belt and meter net for extreme high strength and long durability.

2 - 40Cr Alloy Head, for high wearing resistance 3 - Crank Shaft made of 40Cr Alloy, for extreme long durability.

4 - All flexible hose is standard 4 meters long, can be longer for extra cost, up to 16 meters.

5 - It can be powered by electric (220V or 380V) motor, gasoline motor and diesel motor.

Our poker needle's head diameter is range from 25mm up to 70mm.

StandardHose length is from 4 meterto 12meter, can make up to 16 meter upon request( it will require MOQ 300 pieces).

Unit price is depends on the diameter of the head and hose length.

Price is for poker/needle only, it does not come with power source.

Please check out site for power source.

Three types of couplings: Chinese, Japanese and Dynapac(Indonesia type).

- - - - Model | ZV25 | ZV35 | ZV38 | ZV45 | ZV50 | ZV70 | ZP38 | ZP45 | ZMC25-1M | ZMC35-1M | Engine | Electric 1.1-1.5kw or Fuel Engine 3-5.5HP | Handheld 800w | Dia.

of head(mm) | 26 | 36 | 38 | 47 | 51 | 68 | 38 | 45 | 25 | 35 | Frequency(Hz) | 230 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 260 | 300 | Amplitude(mm) | 1.1 | 1.15 | 1.18 | 1.2 | 1.21 | 1.32 | 1.2 | 1.25 | 0.7 | 0.8 | Dia.

of Hose | outer | 24 | 30 | 30 | 32 | 36 | 46/36 | 30 | 36 | 24 | 30 | (mm) | inner | 13 | 16 | 16 | 18 | 20 | 20 | 16 | 18 | 13 | 16 | Dia.

of Shaft(mm) | 8 | 10 | 10 | 13 | 13 | 13 | 10 | 13 | 8 | 10 | - - - -
