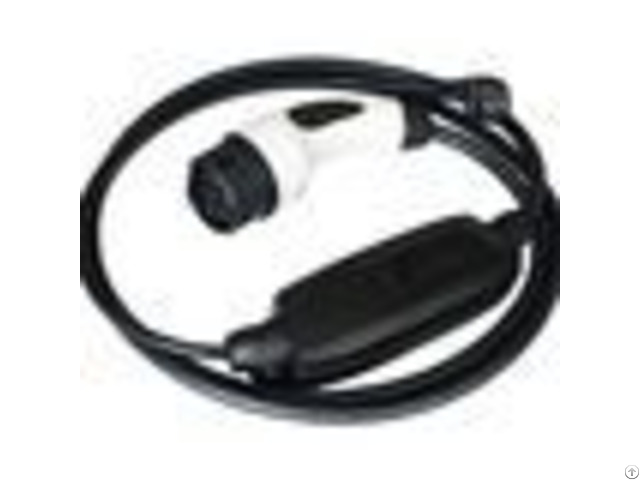

Electric Vehicle Charging Plug - China
price: 5.00 Dollar US$
Quick Details
Place of Origin: Zhejiang, China
Brand Name: Assem
Model Number: ASEVC-37
Product Name: Charging mode 2 Ev Socket Application: Electric vehice electrical connection
Features
1 - Charging plug meet 62196-2 IEC 2010 SHEET 2-IIe standard
2 - Power plug meet DIN VED 0620-1 standard
3 - Control box meet IEC 61851-1 2010 control principle
4 - Excellent protection performance, plug IP44(working condition), PSE IP55/67(working condition)
Mechanical properties 1 - Mechanical life : no-load plug in/pull out＞10000 times
2 - Impat of external force: can afford 1m drop and 2t vehicle run over pressure
Electrical Performance 1 - Rated current and voltage：250V AC 16A
2 - Insulation resistance：＞1000MΩ(D C500V)
3 - Terminal temperature rise：＜50K
4 - Withstand Voltage：2000V
Environmental performance 1 - Operating temperature: -30°C~+50°C
Applied Materials 1 - Case Material: Thermoplastic, flame retardant grade UL94 V-0
2 - Contact bush: Copper alloy, silver+thermoplastic on the top
Control Box Function 1 - Leakage protection(restart recover)
2 - Over voltage under-voltage protection(self-checking recover)
3 - Overload protection(self-checking recover)
4 - Lighting protection
