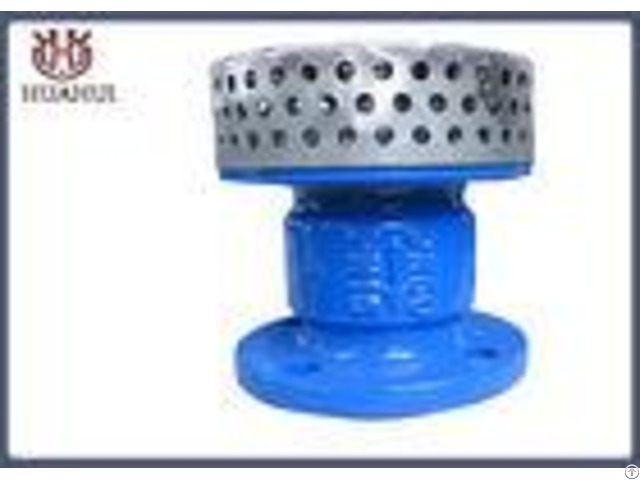

Flanged Silent Foot Check Valve Ss304 Strainer Dn150 With En1092 Standard - China
price: check with company for price
Foot valve flaned check valve ss304 screem DN50-DN600 en1092 flange 1 - FLANG TYPE SILENCING CHECK VALVE(To prevent water reverse flow) Silencing check valve role is only allowed to medium flows in one direction the direction and stop the flow 2 - Parts material: - - - - Item | Description | Material(Optional) | 1 | Seat | Ductile Iron GGG40 | 2 | Body | Cast Iron GG25 / Ductile IronGGG40 | 3 | Bushing | PTFE | 4 | Spring | Stainless steel | 5 | O-Ring | NBR / EPDM / VITON | 6 | Disc | Ductile Iron GGG40/Brass | - - - - 3 - DIMENSION: - - - - DN (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | L(mm) | 100 | 120 | 140 | 170 | 200 | 230 | 301 | 370 | 410 | A(mm) | 50 | 65 | 80 | 101 | 127 | 145 | 194 | 245 | 300 | B(mm) | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | (mm) | PN10 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | PN16 | 355 | 410 | - - - - # # Working Pressure: 1.6Mpa # Test Standard: API598 DIN3230 # Flange Standard: EN1092-2 PN10/16 # size;DN50-DN600 # Screw; ss304
Company Contact:
- Posted By: HEBEI HUAHUI VALVE COMPANY
- Phone: 86-317-4583000
- Address: No.4 Road of Botou Industrial Zone, Cangzhou City,Hebei Province,China, Cangzhou , Hebei , China
- Email:
Published date: February 6, 2018
- Business Description: We have two engineers to solve the guests technical problem.
At the same time, we have 65 workshop colleagues who can process the products in the first time and give the best delivery time.
For the qulity control, we have three people to check the qulity before the goods ship to our customer.
