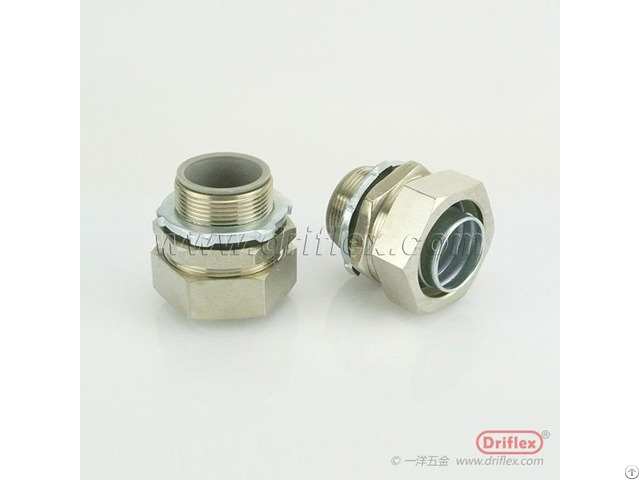

Hot Selling Nickle Plated Brass Straight Conduit Fittings - China

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, hexagonal pressure nut, sealing ring and ferrule Material:

•Connector body - Nickel plated brass

•Hexagon pressure nut - Nickel plated brass

•Sealing ring - Nylon 66

•Ferrule - Galvanized steel Features:

•Simple, one piece installation provides a quick and reliable liquid-tight seal

•IP rating from IP40 to IP66/67 in combination with the corresponding flexible conduits •High mechanical strength

•Highly liquid-tight and dustproof

•Vibration and tensionproof •Inherently low fire hazard

•Covering of the conduit ends •Available in straight, 45o and 90o bodies

•Available in ISO Metric and NPT threads Applications:

•General indutrial and commerical electrical wiring protection

•Machining centres and robotics •any narrow space in static applications

•General wiring for OEM applications

•Low fire hazard applications •Underflooring wiring in office buildings Special Applications:

According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.

Specifications: Part No ISO Thread (mm) Part No NPT Thread (inches) I.D. (mm) O.

D (mm) Box (pcs) LTCM-B09 16 LTC-B09 5/16" 11.0 15.7 25

LTCM-B10 16/20 LTC-B10 3/8" 11.0 19.7 25

LTCM-B11 20 LTC-B11 1/2" 14.5 19.7 25

LTCM-B12 25 LTC-B12 3/4" 19.5 24.7 25

LTCM-B13 32 LTC-B13 1" 25.0 31.7 15

LTCM-B14 40 LTC-B14 1-1/4" 33.5 39.7 6

LTCM-B15 50 LTC-B15 1-1/2" 38.0 49.7 6

LTCM-B16 63 LTC-B16 2" 49.5 62.7 4 Suitable flexible conduits:

•VJ type of vacuum jacketed flexible conduit

•LT type of liquid-tight flexible conduit

•FM type of flexible metallic conduit
