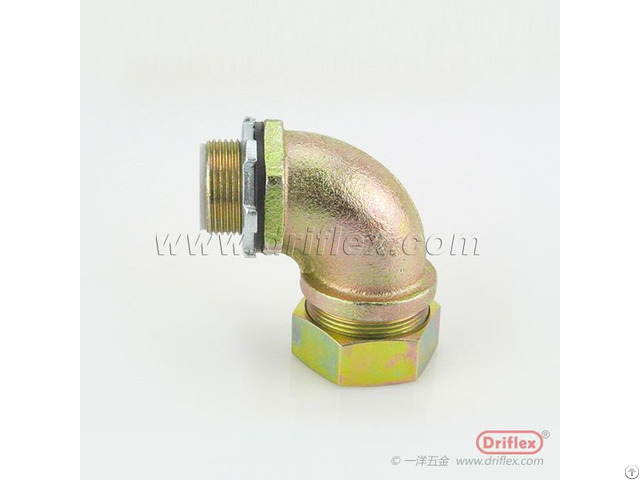

Hot Selling Steel 90d Liquid Tight Conduit Fittings - China

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, Comply with stands AS/NZS 2053 - 8, hexagonal pressure nut, sealing ring and ferrule Material:

•Connector body - Galvanized die casting, zinc plated steel& malleable iron, nickel plated brass, stainless steel.

•Hexagon pressure nut - Galvanized die casting zinc plated steel& malleable iron, nickel plated brass, stainless steel.

•Sealing ring - Nylon 66

•Ferrule - Galvanized steel Features:

•Reliable liquid-tight seal

•IP40 to IP66/67/68 in combination with the corresponding flexible conduits •High mechanical strength

•Highly liquid-tight and dustproof

•Vibration and tensionproof •Inherently low fire hazard

•Covering of the conduit ends •Temperature range from -40oC to +150oC

•Available in straight, 45o and 90o bodies

•Available in ISO Metric and NPT , PF, PG, BSP etc.

threads Applications:

•General indutrial and commerical electrical wiring protection

•Machining centres and robotics •any narrow space in static applications

•General wiring for OEM applications

•Low fire hazard applications •Underflooring wiring in office buildings

•Machine tools

•Installations where liquid-tight is a requirement

•Outdoor installation Special Applications:

According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.

Specifications: Part No ISO Thread (mm) Part No NPT Thread (inches) I.D. (mm) O.

D (mm) Box (pcs) LTCM-209 16 LTC-209 5/16" 11.0 15.7 25

LTCM-20 16/20 LTC-20 3/8" 11.0 19.7 25

LTCM-21 20 LTC-21 1/2" 14.5 19.7 25

LTCM-22 25 LTC-22 3/4" 19.5 24.7 25

LTCM-23 32 LTC-23 1" 25.0 31.7 15

LTCM-24 40 LTC-24 1-1/4" 33.5 39.7 6

LTCM-25 50 LTC-25 1-1/2" 38.0 49.7 6

LTCM-26 63 LTC-26 2" 49.5 62.7 4 Suitable flexible conduits:

•VJ type of vacuum jacketed flexible conduit

•LT type of liquid-tight flexible conduit

•FM type of flexible metallic conduit
