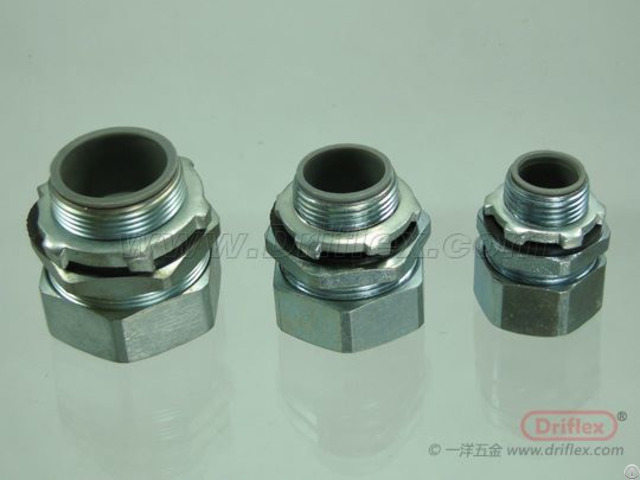

Hot Selling Steel Straight Liquid Tight Conduit Fittings - China

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, hexagonal pressure nut, sealing ring and ferrule Material:

•Connector body - Galvanized die casting malleable iron •Hexagon pressure nut - Galvanized die casting malleable iron •Sealing ring - Nylon 66

•Ferrule - Galvanized steel Features:

•Simple, one piece installation provides a quick and reliable liquid-tight seal

•IP rating from IP40 to IP66/67 in combination with the corresponding flexible conduits •High mechanical strength

•Highly liquid-tight and dustproof

•Vibration and tensionproof •Inherently low fire hazard

•Covering of the conduit ends •Available in straight, 45o and 90o bodies

•Available in ISO Metric and NPT threads Applications:

•General indutrial and commerical electrical wiring protection

•Machining centres and robotics ◦any narrow space in static applications

-General wiring for OEM applications

-Low fire hazard applications -Underflooring wiring in office buildings Special Applications:

According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.

Specifications:

Part No ISO Thread (mm) Part No NPT Thread (inches) I.D. (mm) O.

D (mm) Box (pcs) LTCM-09 16 LTC-09 5/16" 11.0 15.7 25

LTCM-10 16/20 LTC-10 3/8" 11.0 19.7 25

LTCM-11 20 LTC-11 1/2" 14.5 19.7 25

LTCM-12 25 LTC-12 3/4" 19.5 24.7 25

LTCM-13 32 LTC-13 1" 25.0 31.7 15

LTCM-14 40 LTC-14 1-1/4" 33.5 39.7 6

LTCM-15 50 LTC-15 1-1/2" 38.0 49.7 6

LTCM-16 63 LTC-16 2" 49.5 62.7 4 Suitable flexible conduits:

•VJ type of vacuum jacketed flexible conduit

•LT type of liquid-tight flexible conduit

•FM type of flexible metallic conduit

Company Contact:

• Posted By: Tianjin Driflex Company Ltd.

• Phone: +8602266282961

• Address: C-305,No.95, The 4th Avenue, TEDA, Tianjin , Tianjin , China

• Email:

• Business Description: Tianjin Driflex Co., Ltd. is a leading manufacturer and supplier of high quality metallic conduit fittings and flexible conduit based in China.

  Driflex main products includes:

  -Conduit fitting

  -Liquid-tight conduit fittings

  -Explosive-proof fittings

  -Cable glands

  -Non-jacketed metallic flexible conduit

  -PVC Jacketed metallic flexible conduit

  -Liquid-tight metallic flexible conduit

  -Explosive-proof conduit

  -Nylon conduit

  We are keen to establish long last business partnership with all companies or individuals of the same fields worldwide.
