Industrial Grade Fixed Mount Scanner 60cm S Scan Tolerance 4 Mil Fast Decoding - China

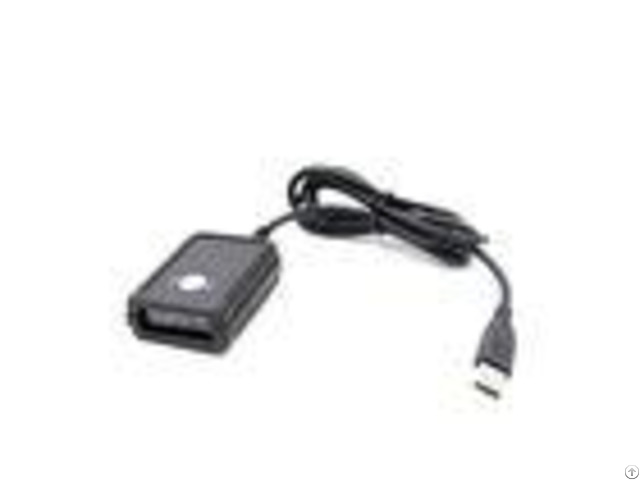

60CM/S Scan Tolerance 640*480 Resolution Fixed Mount Scanner China Industrial Grade Barcode Scanner RS232/USB Product Description DF4200 is a high performance fixed mount scanner with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 2D codes, read the paper, goods, screens, other media barcodes.

Compact design, can be easily embedded in all kinds of equipment.

Widely used in various self-service machines, industrial lines, etc.

Features Simple structure, widely used in self-service selling machines.

Read all mainstream 1D 2D barcodes in the market easily.

High-performance processor, fast decoding.

(4mil) Support dark environment scanning.

Interface: USB, RS232 - Support USB barcode information transmission.

( languages customization) Application Lockers Mobile coupons, tickets Medical research Mobile payment barcode scanning Lottery machines Self-service terminals Queuing calling equipment Self-service vending machines Microcontroller development - - - - Physical Parameter | | Weight | 100g(USB) | Dimension | (L)70mm * (W))51mm * (H)23mm | Interface Type | USB, DB9 | Communication Mode | USB(USB-KBW, USB-COM), RS232 | Power Supply | DC 5V@280mA(work) | Performance | | Scan Type | CMOS | Light Source | Visible red light LED 62510nm(aiming), 6500K LEDs(lighting) | CPU | 32-bit | Resolution | 640*480 | Resolution | 4mil/0.1mm(PCS90%, Code 39) | Scan Tolerance | 60CM/S | Depth of field | 20mm-700mm | Scan Mode | manual, sense | Scan Angle | Roll360, Pitch60, Skew60(PCS90%, Code 39, 10mil/0.25mm) | Print Contrast Signal | 20% | Ambient Light | Dark environment, indoor natural light | Symbologies | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), MSI Plessey, RSS, China Post, Telepen, etc.

2D: QR Code, Data Matrix, PDF417, Maxicode, Aztec, Hanxin, OCR, etc.

| Environmental | | Operating temperature | -20 to 50 | Storage temperature | -40 to 70 | Humidity | 5% to 95%(non-condensing) | Drop Height | 1.5 m | Transport vibration Test | 10H@125RPM | Depth of field | | 3MIL | 50-130mm (PCS90%, Code 39) | 13MIL | 50-420mm (PCS90%, EAN-13) | 20MIL | 80-460mm (PCS90%, Code 39) | 40MIL | 130-700mm (PCS90%, Code 39) | 20MIL | 20-220mm (PCS90%, QR Code) | Accessories List | | Cable (non-removable) | USB Cable, used to connect the DF4200 to a host device.

| RS232 Cable, used to connect the DF4200 to a host device, with USB supply cable.

| - - - - FAQ 1 - What's the shipping way ? A: There are DHL, Fedex, TNT, UPS.

We also can ship the goods by your shipping account or other express agent you provided.

2 - What's the payment way ? A: We accept PayPal, T /T, LC, Western Union, .

3 - How about your product warranty ? A: Our officially promised warranty time is 1 years after delivery.

4 - Is OEM or ODM available? Yes.

We are the factory directly.

We can make it as your requirement.

With well packed carton by foam and plastic film to advoid goods damage.

5 - where I can get the support ? A: We support you technically 24h
