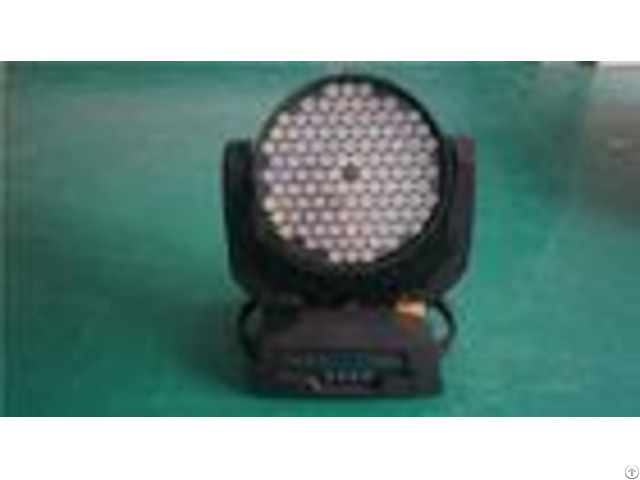

Led Moving Head Wash Light 3w 108pcs Power 16 Bits Linear Constant Current Driver - China

Led Wash Moving Head Light 3w 108pcs RGBW for stage moving heads light TechinicalSpecifications: Voltage: AC110V-240V/50-60 Hz Lamp: 108PCS 10W (R20 G20 B32 W24LED)/324W Control Mode: DMX512, Master/slave, Sound-active(LCD display) Channel: 16CHS Driver: 16 Bits linear constant-current driver Brightness: PWM linear dimmer 0-100%, unlimited RGBWA color mixing, Wash zoom Beam Angle: 25 15 35 45 Degrees optional Rated power: 350W Function Specifications 1) wash zoom at large angle, LCD display, easy to operate the menu, legible writing on the LCD display.

2) Built -in synchronous strobe effect at fast speed(0.2 times/S16 times/S) 3) Super -Smooth scan with large angle, Pan 540, Tilt 270, 16bit scan accuracy, accurate position, speed adjustable.

4) Built in auto-run programmer, master-slave mode, make the users operate more conveniently and easily.

5) Chassis of the PC using streamlined fashion plastic shell, Die-casting structure design and winds refrigeration, which is with the good cooling system, stability and security Package Size(mm): 530430365(1PCS/C TN) N/W: 10.2KG/PCS DMX CHANNELS - - - - Channel | Function | DMX-value | Description | CH1 | Dimmer | 0-255 | Graduallylighton | CH2 | Strobe | 0-3 | Nostrobeeffect | 4-249 | Strobe, (fastslow) | 250-255 | Nostrobeeffect | CH3 | Red | 0 255 | Graduallylighton | - - - - - - - - CH4 | Green | 0 255 | Graduallylighton | CH5 | Blue | 0 255 | Graduallylighton | CH6 | White | 0 255 | Graduallylighton | CH7 | Panmotor | 0 255 | 540degree | CH8 | Tiltmotor | 0 255 | 270degree | CH9 | Fixed15colors | 0 9 | Noeffect | 10 25 | Red | 2641 | Green | 42 57 | Blue | 58 73 | White | 7489 | Red+Blue | 90 105 | Green+Blue | 106 121 | Blue+White | 122 137 | Red+Blue | 138 153 | Red+White | 154 169 | Green+White | 170 185 | Red+Green+Blue | 186 201 | Red+Green+White | 202 217 | Red+Blue+White | 218 233 | Green+Blue+White | 234 249 | Red+Green+Blue+White | 228255 | Noeffect | CH10 | Built-incolor effect | 0 9 | Noeffect | 9 79 | 15colorsjumpingchange | 80 159 | 7colorsgraduallychange | 160 239 | Colorfulfantasticeffect | 240 255 | Noeffect | CH11 | Builtinthespeed ofcoloreffect | 0 255 | SpeedGraduallyfast | - - - - - - - - CH12 | Panmotor16bits | 0-255 | XPANFineinchingscope | CH13 | Tiltmotor16bits | 0-255 | YTILTFineinchingscope | CH14 | XYspeed | 0 | Internaldynamicspeed.

Ifpu sh fast, thengofast;ifpushslow, thengoslow.

Intelligent regulation.

| 1-255 | Fixedspeed, (fastslow) | CH15 | XYbuiltineffect | 0-9 10-49 50-89 90-129 130-169 170-209 210-249 | Noeffect Effect1 Effect2 Effect3 Effect4 Effect5 Keepitthesameasbefore | CH16 | Resetcontrol | 0-199 | Nocontrol | 200-210 | Waitfor5seconds, thesystem willreset | 211-255 | Nocontrol | - - - -
